Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance Elite, FIT4, 3-position, 110x15mm Boost axle
Rear Shock
FOX Float DPS Performance Elite EVOL, 184mm x 44mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed, Shiftmix
Cassette
SRAM XG-1275, 12-speed, 10-50 tooth
Crank
SRAM X1 1400, 175mm length
Bottom Bracket
SRAM GXP, PressFit
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Race Face Aeffect, 110x15mm Boost front, 142x12mm rear
Rear Hub
Race Face Aeffect, 110x15mm Boost front, 142x12mm rear
Rims
Race Face Aeffect SL 24
Spokes
Race Face Aeffect
Tires
Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
Brakes
Brakes
Magura MT Trail Custom, 180mm Magura Storm HC 6-bolt rotors
Brake Levers
Magura MT Trail Custom
Cockpit
Stem
Race Face Turbine Basic, 31.8mm clamp, 60mm length (16", 18"), 70mm length (20")
Handlebar
Race Face Turbine, 31.8mm clamp, 760mm width, 0.5" rise
Grips
Ergon GE10 slim
Headset
FSA, ZS44/IS52
Seat
Saddle
Selle Italia X1
Seatpost
Fox Transfer Performance dropper, 125mm travel (16", 18"), 150mm travel (20")
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm |
| Front Center | 702 mm | 725 mm | 748 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 593 mm | 602 mm | 611 mm |
| Reach | 422 mm | 441 mm | 460 mm |
| Top Tube Length | 575 mm | 597 mm | 619 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1131 mm | 1154 mm | 1177 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 711 mm | 735 mm | 759 mm |
| Wheels | 27" | 27" | 27" |
Model Overview

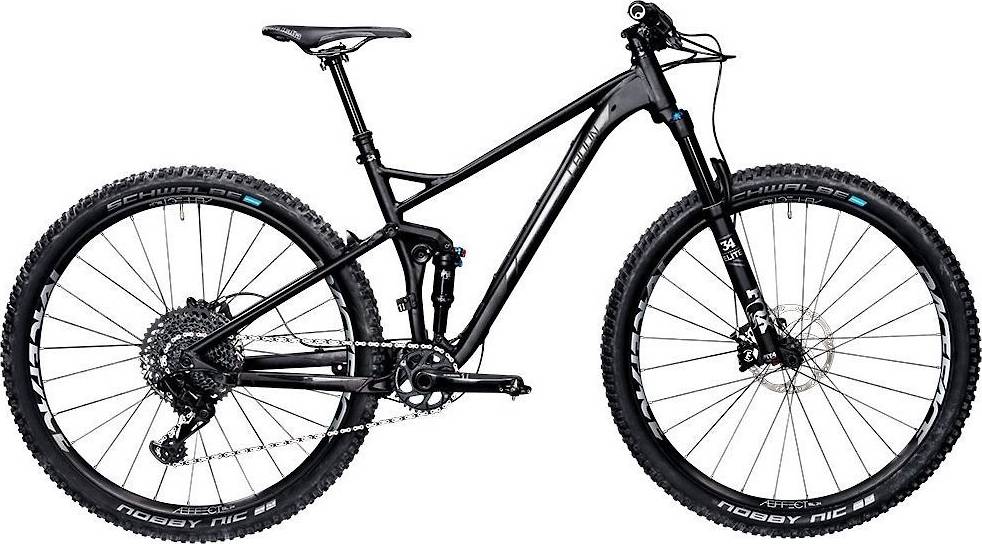

Skeen Trail 10.0 27.5″ completes the Radon Skeen model. 20 bikes variations carry this model name so far. Take a sneak peek at all Radon Skeen bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Skeen Trail 10.0 27.5″ weighs 12.25 kg (27.01 lbs) and is a bit lighter than the average. In other words, this model is 5.96% lighter than the average Trail bike.
Skeen Trail 10.0 27.5″ components
Fork
The Fox Performance Elite Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Skeen Trail 10.0 27.5″ has a rear shock with a travel of 120mm. The model FOX Float DPS Performance Elite EVOL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Skeen Trail 10.0 27.5″ are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Radon Skeen Trail 10.0 27.5″ comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
