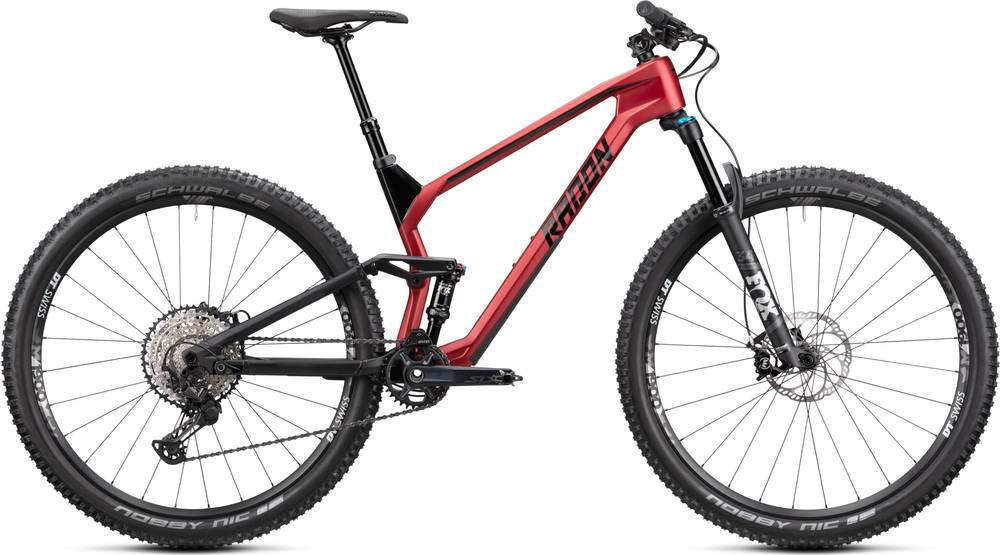

Radon SKEEN TRAIL CF 9.0 2020
2020 Mountain
Estimate price |
2,866$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SKEEN TRAIL CF 29; Material: Carbon mainframe, alloy rear triangle, Max. width tire: 2.4", Hanger: #10240
Suspension Fork
Fox 34 Rhythm 29, Boost
Rear Shock
FOX FLOAT DPS, Performance, LV, EVOL, Trunnion Mount, 185mm x 47.5mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7100-R
Cassette
Shimano SLX, CS-M7100, 10-51
Crank
Shimano SLX FC-M7100, 32T, Boost, 175mm
Bottom Bracket
Shimano BB-MT500PA, press-fit, 92mm
Chain
Shimano SLX CN-M7100
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Front Hub
DT Swiss M1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss M1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss M1900 Spline 29, 25mm, 110/148mm
Spokes
DT Swiss M1900 Spline wheelset
Tires
Schwalbe Nobby Nic, Addix Performance Line, 29" x 2.35"
Brakes
Brakes
Magura MT Trail Custom
Brake Levers
Magura MT Trail Custom
Cockpit
Stem
Race Face Turbine Basic, 35mm; 16"/60mm, 18"/60mm, 20"/70mm, 22"/70mm
Handlebar
Race Face Turbine, 35 x 760mm, 10mm rise
Grips
SDG Slater
Headset
Acros AzX, ZS44/ZS56
Seat
Saddle
SDG Radar
Seatpost
Radon Competition Dropper, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 740 mm | 761 mm | 785 mm | 808 mm |
| Rake | 48 mm | 49 mm | 49 mm | 50 mm |
| Trail | 110 mm | 109 mm | 109 mm | 108 mm |
| Stack | 597 mm | 606 mm | 615 mm | 628 mm |
| Reach | 429 mm | 446 mm | 466 mm | 482 mm |
| Top Tube Length | 559 mm | 580.6 mm | 603.5 mm | 625.5 mm |
| Seat Tube Angle | 76.5 ° | 76.4 ° | 76.4 ° | 76.4 ° |
| Seat Tube Length | 392 mm | 425 mm | 455 mm | 490 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1165 mm | 1186 mm | 1210 mm | 1233 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 709 mm | 736 mm | 746 mm | 756 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
SKEEN TRAIL CF 9.0 belongs to the Radon Skeen model. There are 20 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Radon SKEEN TRAIL AL 8.0 2020 is the cheapest bike model and costs 2123$. Radon SKEEN TRAIL CF 10.0 SL 2020 is the most expensive one and costs 3928$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2653$. In conclusion, this bike price is 4.11% smaller than the price of the average Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.5 kg (29.76 lbs), Radon bike is slightly heavier than average. In short, the average Trail bike weight is 4.01% lower than this one.
SKEEN TRAIL CF 9.0 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPS, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Radon SKEEN TRAIL CF 9.0 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The SKEEN TRAIL CF 9.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
