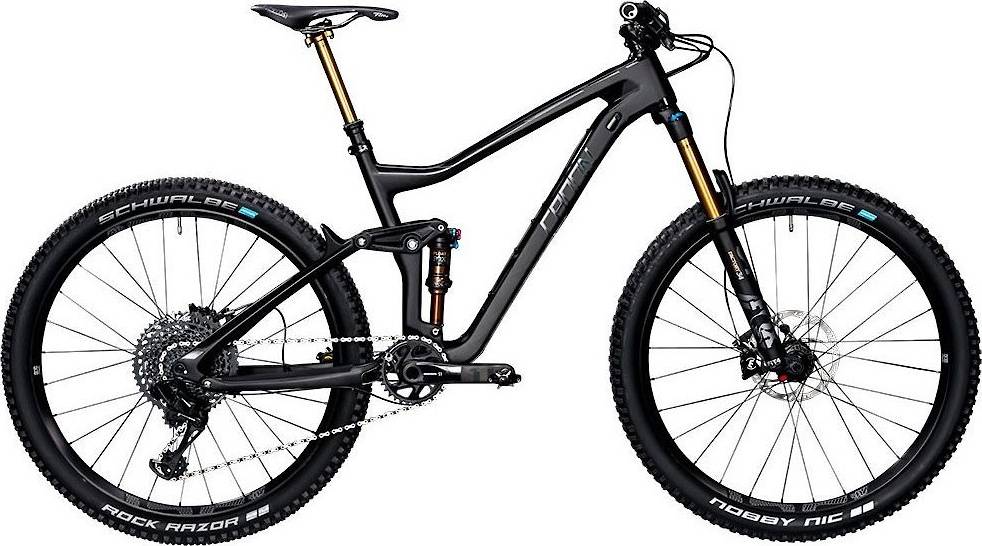

Radon Slide Carbon 140 10.0 HD 2018
2018 Mountain
Weight | 11.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory, 3-position, Kashima, 110x15mm Boost axle
Rear Shock
FOX Float DPS Factory EVOL, Kashima, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed, Shiftmix
Cassette
SRAM XG-1275, 12-speed, 10-50 tooth
Crank
SRAM X1 Eagle Carbon, 175mm length
Bottom Bracket
SRAM GXP, PressFit 92
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
e*thirteen TRS, 110x15mm Boost front, 142x12mm rear
Rear Hub
e*thirteen TRS, 110x15mm Boost front, 142x12mm rear
Rims
e*thirteen TRS
Spokes
e*thirteen TRS
Tires
Front: Schwalbe Nobby Nic, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35", Rear: Schwalbe Rock Razor, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
Brakes
Brakes
Magura MT5, 180mm Magura Storm HC 6-bolt rotors
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Turbine Basic, 31.8mm clamp, 50mm length (16", 18"), 60mm length (20", 22")
Handlebar
Race Face Turbine, 31.8mm clamp, 760mm width, 0.5" rise
Grips
Ergon GE10 slim
Headset
Acros AiX, IS41/IS52
Seat
Saddle
Selle Italia Flite MG
Seatpost
Fox Transfer Factory dropper, 125mm travel (16"), 150mm travel (18", 20", 22")
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 703 mm | 723 mm | 742 mm | 764 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm |
| Trail | 100 mm | 101 mm | 100 mm | 100 mm |
| Stack | 592 mm | 601 mm | 606 mm | 616 mm |
| Reach | 420 mm | 437 mm | 453 mm | 471 mm |
| Top Tube Length | 579 mm | 599 mm | 617 mm | 639 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 420 mm | 440 mm | 465 mm | 490 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1141 mm | 1161 mm | 1180 mm | 1202 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 737 mm | 749 mm | 768 mm | 789 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Slide Carbon 140 10.0 HD is a Radon Slide model. There are 20 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Slide Carbon 140 10.0 HD weighs 11.85 kg (26.12 lbs) and is a bit lighter than the average. In other words, this model is 9.54% lighter than the average Trail bike.
Slide Carbon 140 10.0 HD components
Fork
The Slide Carbon 140 10.0 HD comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPS Factory EVOL rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Slide Carbon 140 10.0 HD 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Radon Slide Carbon 140 10.0 HD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Radon Slide Carbon 140 10.0 HD comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
