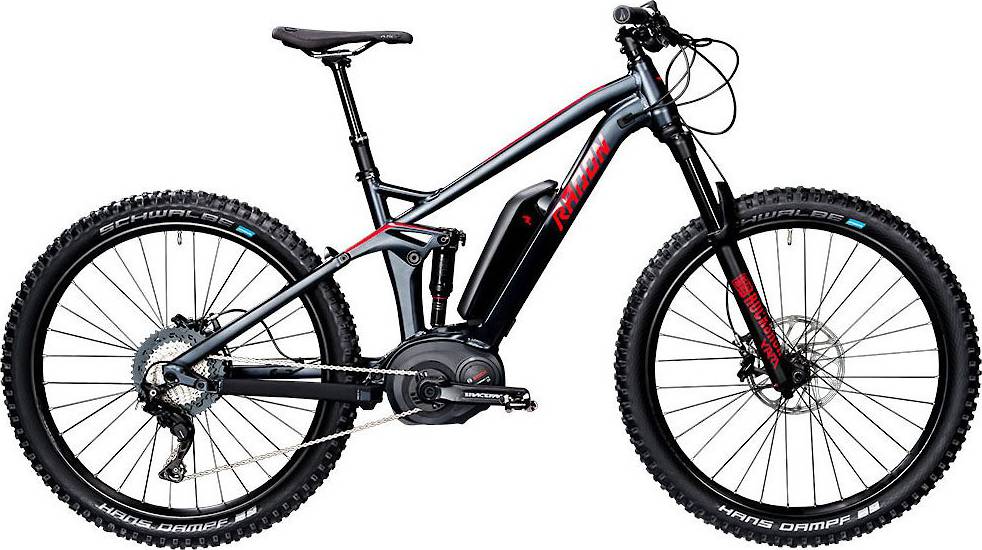

Radon Slide Hybrid 8.0 500 2019
2019 E-bike
Weight | 22.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Yari, Charger RC, Boost
Rear Shock
RockShox Deluxe RT3, DebonAir, Trunnion mount, 185x55mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS
Front Derailleur
None
Shift Levers
Shimano SLX SL-M7000, 11-speed
Cassette
Shimano SLX CS-M7000, 11-46 tooth
Crank
Race Face AEffect E-Bike, 165mm on 16"/18", 170mm on 20"/22"
Chain
Shimano XT CN-E8000-11
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: Shimano Deore HB-M6010-B, Rear: Shimano Deore FH-M6010-B
Rear Hub
Front: Shimano Deore HB-M6010-B, Rear: Shimano Deore FH-M6010-B
Rims
Alex MD 30
Spokes
DT Swiss Factory
Tires
Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.6"
Brakes
Brakes
Front: SRAM Guide R, Avid Elixir 200mm center-lock rotor, Rear: SRAM Guide R, Avid Elixir 180mm center-lock rotor
Brake Levers
SRAM Guide R
Cockpit
Stem
Level Nine Race, 45mm on 16", 60mm on 18", 75mm on 20"/22"
Handlebar
Level Nine Race, 31.8mm diameter, 740 mm, 15mm rise
Grips
SDG Slater
Headset
FSA, ZS44/ZS56
Seat
Saddle
SDG FLY MTN 2, CrMo
Seatpost
SDG Tellis Dropper, 125mm on 16"/18", 150mm on 20"/22"
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.57 mm | 1.52 mm | 1.47 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 761 mm | 784 mm | 807 mm | 831 mm |
| Rake | 102 mm | 102 mm | 101 mm | 101 mm |
| Trail | 45 mm | 45 mm | 46 mm | 46 mm |
| Stack | 629 mm | 638 mm | 647 mm | 657 mm |
| Reach | 388 mm | 407 mm | 427 mm | 446 mm |
| Top Tube Length | 577 mm | 599 mm | 621 mm | 643 mm |
| Seat Tube Angle | 73.2 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 420 mm | 440 mm | 465 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1206 mm | 1229 mm | 1252 mm | 1276 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 772 mm | 772 mm | 772 mm | 774 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Slide Hybrid 8.0 500 is a Radon E Slide model. 3 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Radon Slide Hybrid 8.0 500 it’s weighing 22.7 kg (50.04 lbs). At this weight, is slightly lighter than average. In other words, this model is 4.41% lighter than the average Trail e-bike.
Slide Hybrid 8.0 500 components
Fork
Radon Slide Hybrid 8.0 500 2019 e-bike is equipped with the RockShox Yari RC fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Radon Slide Hybrid 8.0 500 e-bike has the RockShox Deluxe RT3 model installed, and has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Slide Hybrid 8.0 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Slide Hybrid 8.0 500 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
