Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float Factory, FIT GRIP2, Kashima coating, Boost
Rear Shock
FOX Float DPX2 Factory, LV, EVOL, Trunnion mount, 185x55mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Matchmaker
Cassette
SRAM GX Eagle, XG-1275, 10-50 tooth
Crank
SRAM X1 Eagle Carbon, Boost, DUB, 170mm
Bottom Bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX
Chain Guide
MRP 1X
Pedals
None
Wheels
Front Hub
Newmen Evolution SL A30 wheelset
Rear Hub
Newmen Evolution SL A30 wheelset
Rims
Newmen Evolution SL A30 wheelset, 30mm inner width
Spokes
Newmen Evolution SL A30 wheelset
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, SuperG, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, SuperG, Kevlar, 29"x2.35"
Brakes
Brakes
Front: SRAM Guide RSC, SRAM Centerline 200mm 6-bolt rotor, Rear: SRAM Guide RSC, SRAM Centerline 180mm 6-bolt rotor
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Race Face Turbine R 35, 50mm
Handlebar
Race Face Turbine R, 35mm diameter, 760mm, 20mm rise
Grips
SDG Slater
Headset
Acros AzX ZS44/ZS56
Seat
Saddle
SDG FLY MTN 2, CrMo
Seatpost
FOX Transfer Performance, 125mm on 16", 150mm on 18"/20"/22"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.35 mm | 1.33 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 746 mm | 768 mm | 792 mm | 814 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm |
| Trail | 115 mm | 114 mm | 114 mm | 114 mm |
| Stack | 597 mm | 606 mm | 615 mm | 628 mm |
| Reach | 420 mm | 437 mm | 456 mm | 473 mm |
| Top Tube Length | 563 mm | 584 mm | 607 mm | 629 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 392 mm | 425 mm | 455 mm | 490 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1172 mm | 1194 mm | 1218 mm | 1240 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 721 mm | 748 mm | 757 mm | 767 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

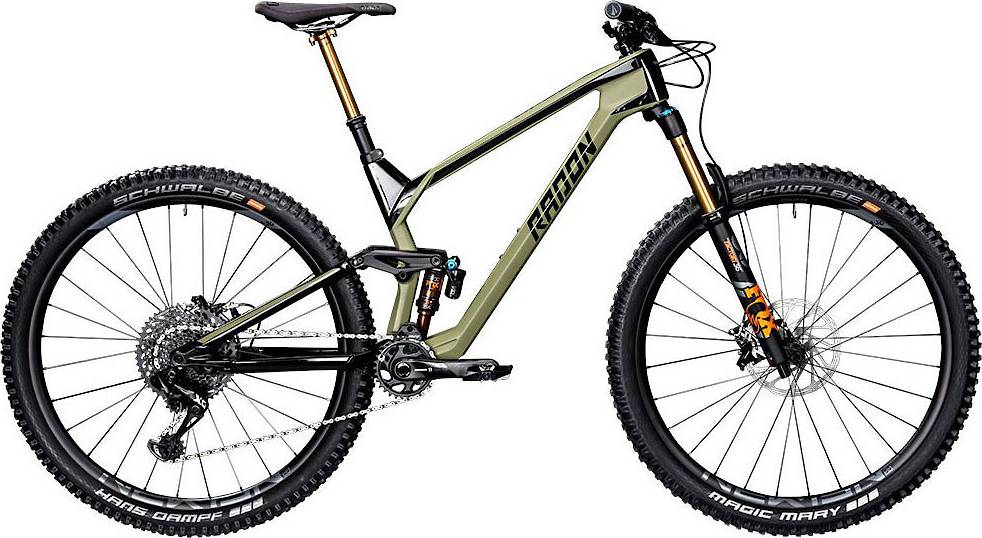

Slide Trail 10.0 completes the Radon Slide model. Radon released 20 bikes variations of this model so far. You can easily view all of the Radon Slide bikes models from 2019, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Radon Slide Trail 10.0 it’s weighing 14.1 kg (31.09 lbs). At this weight, is a bit heavier than average. In conclusion, the average Trail bike weighs 8.63% less than Slide Trail 10.0.
Slide Trail 10.0 components
Fork
Radon Slide Trail 10.0 2019 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float DPX2 Factory, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Slide Trail 10.0 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Radon Slide Trail 10.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Radon Slide Trail 10.0 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
