Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Factory, Kashima, 3-position, 110x15mm Boost axle
Rear Shock
FOX Float X2 Factory, Kashima, 216mm x 63mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed, Shiftmix
Cassette
SRAM XG-1275, 12-speed, 10-50 tooth
Crank
SRAM Descendant Eagle Carbon, 170mm length
Bottom Bracket
SRAM GXP, BSA 73
Chain
SRAM GX Eagle
Chain Guide
e*thirteen TRS+
Pedals
N/A
Wheels
Front Hub
e*thirteen TRS+, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
e*thirteen TRS+, 110x15mm Boost front, 148x12mm Boost rear
Rims
e*thirteen TRS+
Spokes
e*thirteen TRS+
Tires
Continental Baron Project, ProTection Apex, Black Chilli compound, 27.5" x 2.4"
Brakes
Brakes
Magura MT5, Magura Storm 6-bolt rotors, 203mm front, 180mm rear
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Turbine Basic R, 35mm clamp, 40mm length (16", 18"), 50mm length (20" 22")
Handlebar
Race Face Atlas, 35mm clamp, 800mm width, 35mm rise
Grips
SDG Slater
Headset
FSA, ZS44/ZS56
Seat
Saddle
SDG Fly Mtn 2, CrMo rails
Seatpost
FOX Transfer Factory dropper, 125mm travel (16"), 150mm travel (18", 20", 22")
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.31 mm | 1.3 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 758 mm | 775 mm | 793 mm | 811 mm |
| Rake | 46 mm | 46 mm | 47 mm | 47 mm |
| Trail | 109 mm | 109 mm | 108 mm | 108 mm |
| Stack | 599 mm | 599 mm | 608 mm | 617 mm |
| Reach | 439 mm | 456 mm | 469 mm | 483 mm |
| Top Tube Length | 576 mm | 593 mm | 610 mm | 627 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1183 mm | 1200 mm | 1218 mm | 1236 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 712 mm | 727 mm | 745 mm | 764 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

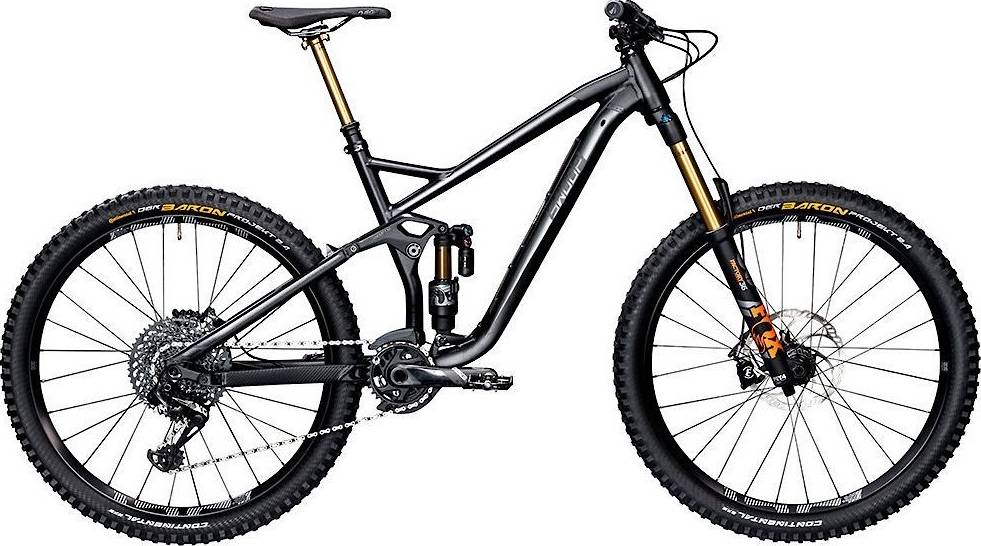

Swoop 170 10.0 is a Radon Swoop model. Radon launched 26 bikes of this model so far. Take a sneak peek at all Radon Swoop bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 14.05 kg (30.97 lbs), the Swoop 170 10.0 model is slightly lighter than average. In conclusion, the average Enduro bike weighs 1.57% more than Swoop 170 10.0.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float X2 Factory, with a travel distance of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Swoop 170 10.0 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Swoop 170 10.0. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
