Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Lyrik
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik RCT3, 110x15mm Boost axle
Rear Shock
RockShox Monarch Plus RC3, DebonAir, 216mm x 63mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7000-I, 11-speed, I-Spec
Cassette
Shimano SLX CS-M7000, 11-speed, 11-46 tooth
Crank
Race Face Aeffect SL, 170mm length
Bottom Bracket
Race Face, BSA 73
Chain
Shimano CN-HG701
Chain Guide
e*thirteen TRS+
Pedals
N/A
Wheels
Front Hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear
Rims
e*thirteen TRS
Spokes
e*thirteen TRS
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
Brakes
Brakes
Magura MT5, Magura Storm 6-bolt rotors, 203mm front, 180mm rear
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Turbine Basic R, 35mm clamp, 50mm length
Handlebar
Race Face Atlas, 35mm clamp, 800mm width, 35mm rise
Grips
SDG Slater
Headset
FSA, ZS44/ZS56
Seat
Saddle
SDG Fly Mtn 2, CrMo rails
Seatpost
JD Vario dropper, 120mm travel (16"), 150mm travel (18", 20", 22")
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.31 mm | 1.3 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 758 mm | 775 mm | 793 mm | 811 mm |
| Rake | 46 mm | 46 mm | 47 mm | 47 mm |
| Trail | 109 mm | 109 mm | 108 mm | 108 mm |
| Stack | 599 mm | 599 mm | 608 mm | 617 mm |
| Reach | 439 mm | 456 mm | 469 mm | 483 mm |
| Top Tube Length | 576 mm | 593 mm | 610 mm | 627 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1183 mm | 1200 mm | 1218 mm | 1236 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 712 mm | 727 mm | 745 mm | 764 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

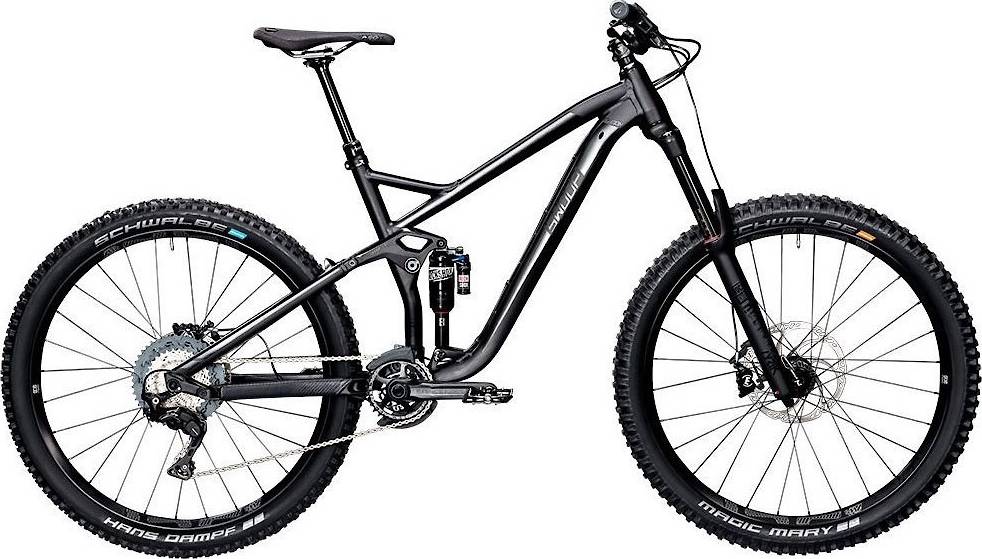

Swoop 170 8.0 is a Radon Swoop model. Radon launched 26 bikes of this model so far. Take a sneak peek at all Radon Swoop bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Radon Swoop 170 8.0 it’s weighing 13.7 kg (30.2 lbs). At this weight, is slightly lighter than average. In other words, this model is 4.16% lighter than the average Enduro bike.
Swoop 170 8.0 components
Fork
The Swoop 170 8.0 comes factory-installed with the RockShox Lyrik fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Monarch Plus RC3, with a travel distance of 170mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Swoop 170 8.0 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Radon Swoop 170 8.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
The Radon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
