Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Performance Elite, 3-position, 110x15mm Boost axle
Rear Shock
FOX Float DPX2 Performance Elite EVOL, 216mm x 63mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed, Shiftmix
Cassette
SRAM XG-1275, 12-speed, 10-50 tooth
Crank
SRAM Descendant Eagle 7k, 170mm length
Bottom Bracket
SRAM GXP, BSA 73
Chain
SRAM GX Eagle
Chain Guide
e*thirteen TRS+
Pedals
N/A
Wheels
Front Hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
e*thirteen TRS, 110x15mm Boost front, 148x12mm Boost rear
Rims
e*thirteen TRS
Spokes
e*thirteen TRS
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5" x 2.35"
Brakes
Brakes
Magura MT5, Magura Storm 6-bolt rotors, 203mm front, 180mm rear
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Turbine Basic R, 35mm clamp, 40mm length (16", 18"), 50mm length (20" 22")
Handlebar
Race Face Atlas, 35mm clamp, 800mm width, 35mm rise
Grips
SDG Slater
Headset
FSA, ZS44/ZS56
Seat
Saddle
SDG Fly Mtn 2, CrMo rails
Seatpost
FOX Transfer Performance dropper, 125mm travel (16"), 150mm travel (18", 20", 22")
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.31 mm | 1.3 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 758 mm | 775 mm | 793 mm | 811 mm |
| Rake | 46 mm | 46 mm | 47 mm | 47 mm |
| Trail | 109 mm | 109 mm | 108 mm | 108 mm |
| Stack | 599 mm | 599 mm | 608 mm | 617 mm |
| Reach | 439 mm | 456 mm | 469 mm | 483 mm |
| Top Tube Length | 576 mm | 593 mm | 610 mm | 627 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1183 mm | 1200 mm | 1218 mm | 1236 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Standover Height | 712 mm | 727 mm | 745 mm | 764 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

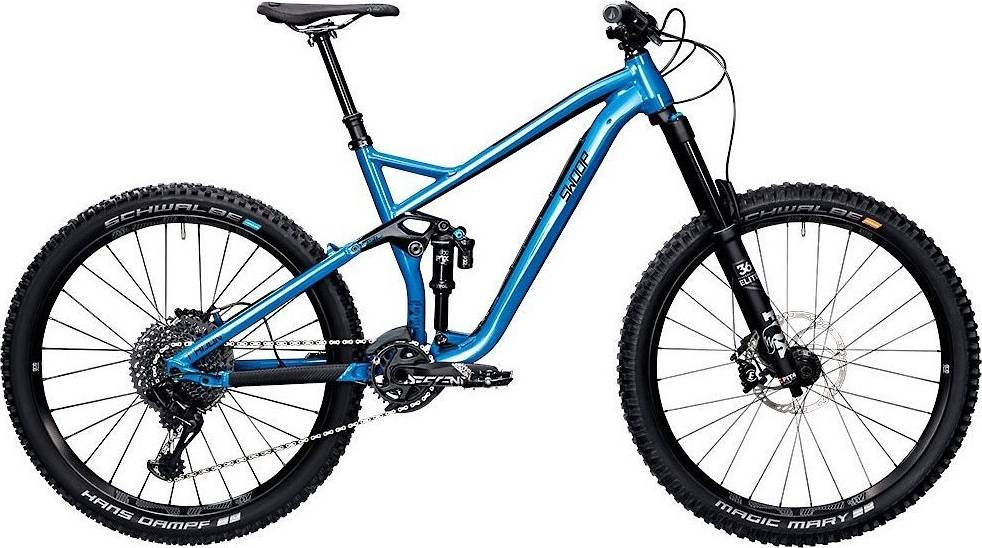

Swoop 170 9.0 belongs to the Radon Swoop model. There are 26 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Radon Swoop 170 9.0 it’s weighing 13.7 kg (30.2 lbs). At this weight, is slightly lighter than average. In conclusion, the average Enduro bike weighs 4.16% more than Swoop 170 9.0.
Overview of components
Fork
Radon Swoop 170 9.0 2018 bike is equipped with the Fox Performance Elite Float 36 fork, and has 170mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float DPX2 Performance Elite EVOL, with a travel distance of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Radon Swoop 170 9.0 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Radon Swoop 170 9.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
The Radon model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
