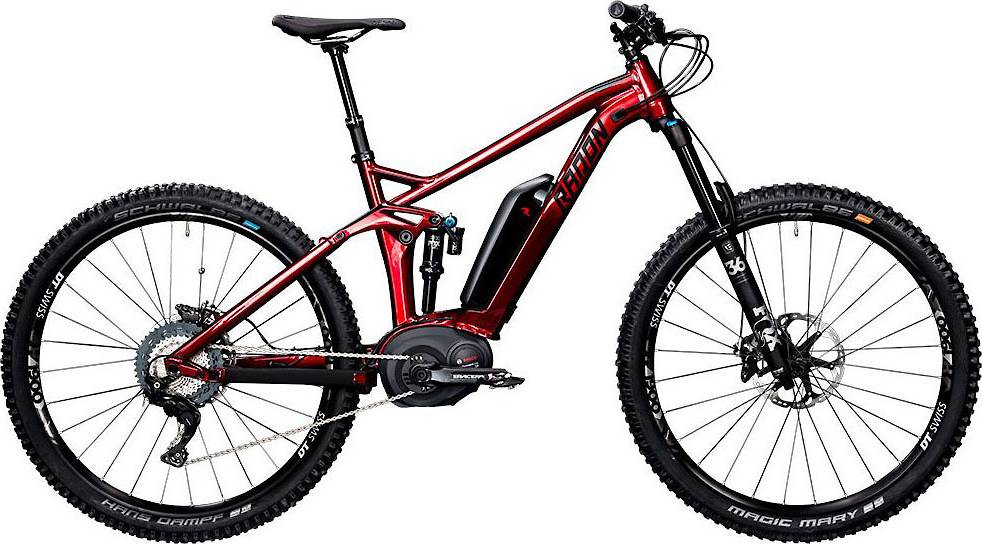

Radon Swoop Hybrid 9.0 500 2019
2019 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Float 36
-
Groupset XT, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Performance, E-bike optimized, FIT GRIP, 3 position, Boost
Rear Shock
FOX Float DPX2 Performance, EVOL, Trunnion mount, 205x65mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS
Front Derailleur
None
Shift Levers
Shimano XT SL-M8000, 11-speed, I-Spec
Cassette
Shimano SLX CS-M7000, 11-46 tooth
Crank
Race Face AEffect E-Bike, 165mm on 17"/19", 170mm on 21"
Chain
Shimano XT CN-E8000-11
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss H1900 Spline wheelset
Rear Hub
DT Swiss H1900 Spline wheelset
Rims
DT Swiss H1900 Spline wheelset, 30mm width
Spokes
DT Swiss H1900 Spline wheelset
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 29"x2.35"
Brakes
Brakes
Shimano XT BR-M8020, Shimano XT SM-RT81 203mm center-lock rotors
Brake Levers
Shimano XT BR-M8020
Cockpit
Stem
Race Face Turbine R, 40mm on 17", 50mm on 19", 60mm on 21"
Handlebar
Race Face Turbine R, 35mm diameter, 780 mm, 20mm rise
Grips
SDG Slater
Headset
FSA, ZS44/ZS56
Seat
Saddle
SDG Fly MTN 2, CrMo
Seatpost
SDG Tellis Dropper, 125mm on 17"/19", 150mm on 21"
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 382 mm | 382 mm | 382 mm |
| Front Center | 763 mm | 782 mm | 802 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 119 mm | 120 mm | 120 mm |
| Stack | 626 mm | 635 mm | 644 mm |
| Reach | 438 mm | 453 mm | 469 mm |
| Top Tube Length | 604 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1268 mm | 1287 mm | 1307 mm |
| Bottom Bracket Drop | -8 mm | -8 mm | -8 mm |
| Standover Height | 789 mm | 804 mm | 824 mm |
| Wheels | 29" | 29" | 29" |
About this model
Swoop Hybrid 9.0 500 completes the Radon E Swoop model. 2 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Radon Swoop Hybrid 9.0 500 it’s weighing 23.1 kg (50.93 lbs). At this weight, is slightly lighter than average. To sum up, it’s 1.39% lighter than the average weight of Enduro e-bikes.
Swoop Hybrid 9.0 500 components
Fork
This e-bike has the Fox Performance Float 36 fork installed. The fork’s travel is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 Performance rear shock model, which has a travel of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Radon Swoop Hybrid 9.0 500 2019, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Radon Swoop Hybrid 9.0 500 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Swoop Hybrid 9.0 500. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
