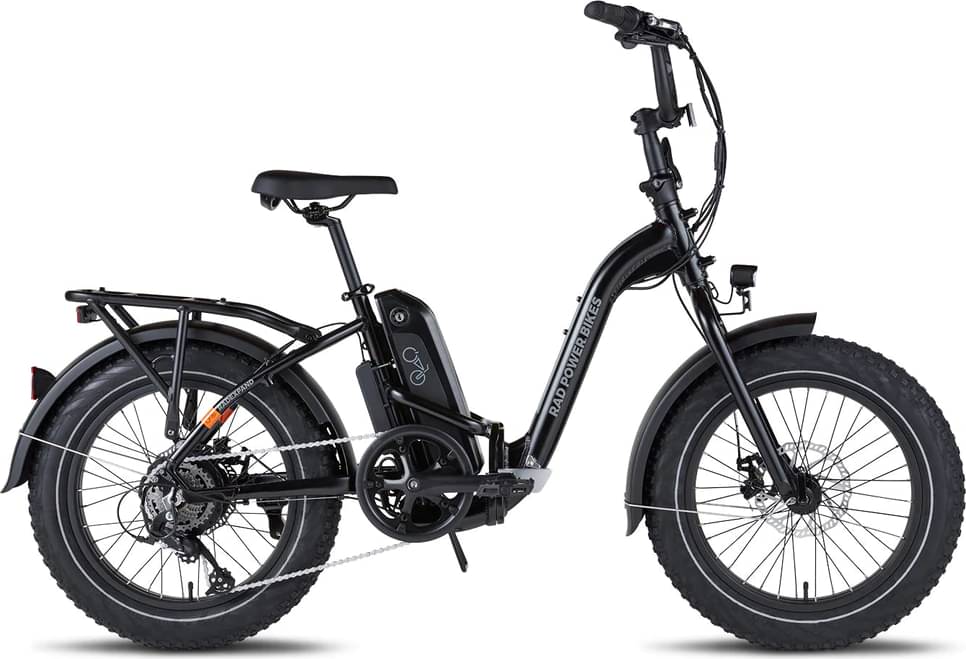

Rad Power Bikes RadExpand 5 Electric Folding Bike 2022
2022 E-bike
Estimate price |
1,744$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 20" -
Groupset microSHIFT -
Suspension Rigid -
Motor 500W hub-drive -
Battery 672 Wh -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
OS
147cm - 178cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
Rad custom steel 135 mm hub width, 9 mm quick release
Drivetrain
Rear Derailleur
7-Speed MicroShift RD-M26
Shift Levers
MicroShift TS71-7 -R under bar thumb shifter, 7-speed
Cassette
7-speed freewheel 14-32T
Crank
48T, 170 mm forged alloy, dual-sided chainring guard
Bottom Bracket
100 mm shell, 164 mm spindle
Chain
KMC Z7, 124 links
Pedals
Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading
Wheels
Rims
Aluminum alloy, 36 hole, Rim width: 60mm
Spokes
12-gauge stainless steel, black
Tires
CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip
Brakes
Brakes
Mechanical caliper
Brake Levers
Rad Power Bikes approved aluminum alloy levers with motor cutoff switch.
Disk Rotors
180 mm front and rear
Cockpit
Stem
45 mm length, + 3º rise.
Handlebar
Alloy, 27" wide, 6.9" rise
Grips
Ergonomically designed, made of soft yet durable rubber
Headset
Semi-integrated, 1-1/8" straight steerer tube
Seat
Saddle
Rad Power Bikes with lifting handle
Seatpost
Aluminum alloy, 390 mm x 27.2 mm
Motor & Battery
Motor
500W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 500W to ensure ebike regulatory compliance and may vary depending on riding conditions.
Battery
672 Wh
Remote
Rad Power Bikes custom LED display with Charge indicator, pedal assist level / error display, headlight/taillight indicator and more
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
RadExpand 5 Electric Folding Bike is a Radpowerbikes E Radexpand model. 3 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Rad Power Bikes RadExpand 5 Electric Folding Bike 2022 is the most affordable e-bike of this model and has a price of 1592$. On the other hand, Rad Power Bikes RadExpand 5 2022, is the most expensive and costs 1592$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Folding e-bikes
According to our calculations, the average cost of a Folding e-bike that is reliable is 1557$. However, you could also get a good Folding e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 1592$. Comparing this to the average Folding e-bike price, we see that the price is 2.25% more expensive.
Folding e-bikes average weight
On a deeper look, we notice that the average weight of a Folding e-bike is 24.04 kg (53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 28 kg (61.73 lbs), Rad Power Bikes e-bike is much heavier than average. To sum up, it’s 16.47% heavier than the average weight of Folding e-bikes.
RadExpand 5 Electric Folding Bike components
Fork material
RadExpand 5 Electric Folding Bike has a steel fork, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Rad Power Bikes RadExpand 5 Electric Folding Bike 2022, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rad Power Bikes RadExpand 5 Electric Folding Bike is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
