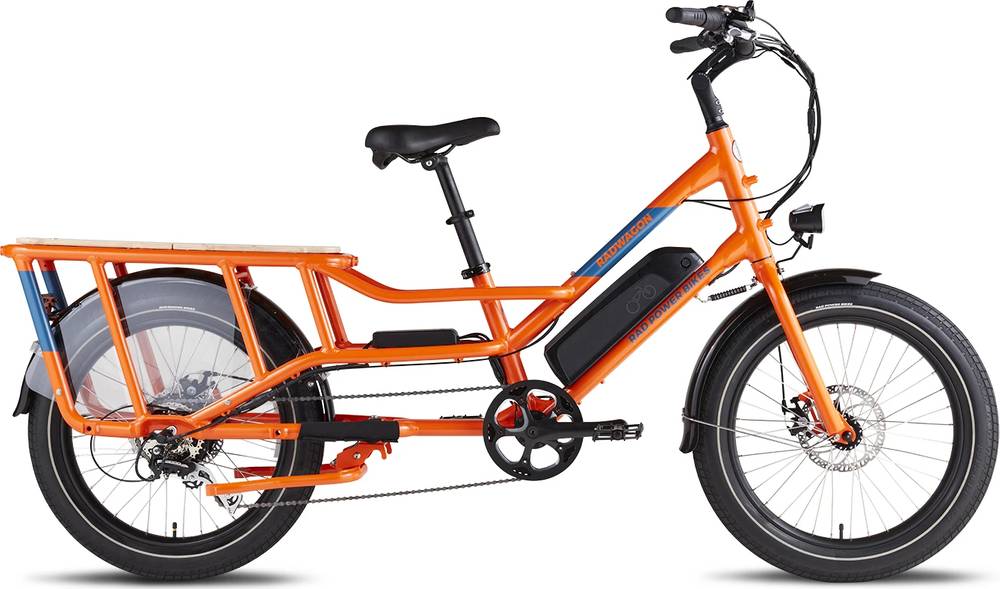

Rad Power Bikes RadWagon 4 2020
Bike details
Key information split into simple groups.
Bike summary
-
Category
-
Frame Aluminum
-
Wheels 22"
-
Groupset Shimano
-
Suspension Rigid
-
Motor hub-drive
-
Battery 48V, 14 Ah (672 Wh) with Lithium NMC Samsung 35E cells, rated for 800 charge cycles
-
Drivetrain 1 × 7
-
Brakes Mechanical Disc
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
Rigid steel fork for 22" wheel
Drivetrain
Rear Derailleur
7-speed Shimano
Shift Levers
Shimano thumb shifter, 7-speed
Cassette
DNP 7-speed freewheel, 11-34T
Crank
46T chainring; ProWheel Solid 170 mm crank length; square-taper J.I.S.; dual-sided chainring guard
Bottom Bracket
84 mm
Chain
KMC Z7, 160 Link
Pedals
Wellgo B087 CrMo axle, forged aluminum platform with reflectors, standard 9/16" x 20 TPI threading
Wheels
Rims
Shinning DB-X50, alloy, double wall, black powder coated, 36 hole
Spokes
12 gauge, stainless steel
Tires
Rad Power Bikes, custom 22" x 3"Manufacturer: VEE Tire Co.
Brakes
Brakes
Tektro Aries (MD-M300)
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch
Disk Rotors
Tektro 180 mm front and rear
Cockpit
Stem
Satori EZ3 AHS toolless adjustable handlebar stem with built in top cap bolt. Reach, height (stack), and handlebar angle adjustment (80 degrees) with press of a button/lever lift.
Handlebar
Swept-back, RPB custom
Grips
Velo comfort rubber ergo grips
Headset
Semi-integrated, 1-1/8" straight steerer tube
Seat
Saddle
Velo Plush with lifting handle
Seatpost
Satori telescoping seatpost, Telescoping, max length = 440 mm x 34.9 mm
Motor & Battery
Motor
Geared Hub Motor with 5:1 Planetary Reduction
Battery
48V, 14 Ah (672 Wh) with Lithium NMC Samsung 35E cells, rated for 800 charge cycles
Remote
Backlit LCD with charge indicator, speedometer, odometer, trip odometer, pedal assist level, wattmeter, and more
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on both 110V and 230V AC power outlets
Model Overview
RadWagon 4 is a Radpowerbikes E Radwagon model. Rad Power Bikes released 7 e-bikes variations of this model so far. You can easily view all of the Radpowerbikes E Radwagon e-bikes models from 2020, here.
Model range prices
Rad Power Bikes RadWagon 4 2020 is the cheapest e-bike model and costs 1499$. Rad Power Bikes RadWagon Electric Cargo Bike 2020 is the most expensive one and costs 1499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Long Tail Cargo e-bikes average price
According to our math, the average price for a trustworthy Long Tail Cargo e-bike is 3082$. However, you could also get a good Long Tail Cargo e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 1499$. If we compare this with the average Long Tail Cargo e-bike cost we notice that the price is 105.6% smaller.
Long Tail Cargo e-bikes average weight
Long Tail Cargo e-bikes weigh an average of 32.16 kg (70.9 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
RadWagon 4 weighs 34.8 kg (76.72 lbs) and is a bit heavier than the average. To sum up, it’s 8.21% heavier than the average weight of Long Tail Cargo e-bikes.
RadWagon 4 components
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the RadWagon 4 model has 22″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
When you want to stop the bike in time, the brakes are vital. The RadWagon 4 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This e-bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
