Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Yari RC
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
Rockshox Yari RC, 46mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50 tooth
Crank
Truvativ Descendant DUB, 170mm length
Bottom Bracket
SRAM DUB, 73mm BSA threaded
Chain
12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
SUNringlé Duroc 35 Comp wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
SUNringlé Duroc 35 Comp wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
SUNringlé Duroc 35 Comp wheelset, tubeless ready with rim tape installed and tubeless valves included
Spokes
SUNringlé Duroc 35 Comp wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 27.5" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 27.5" x 2.4" WT
Brakes
Brakes
SRAM Guide T, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide T
Cockpit
Stem
Ragley Stubbing, 50mm length
Handlebar
Ragley Alloy, Black, 25mm rise, 780mm width
Grips
Ragley lock-on
Headset
FSA No.9, tapered, ZS44/28.6 upper, EX44/40 lower
Seat
Saddle
Ragley Tracker
Seatpost
Brand-X Ascend dropper, Drop: 125mm (SM), 150mm (MD/LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 749 mm | 773 mm | 797 mm | 822 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 610.9 mm | 619.8 mm | 628.8 mm | 637.8 mm |
| Reach | 417 mm | 437 mm | 457 mm | 477 mm |
| Top Tube Length | 593 mm | 615.6 mm | 638.2 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.75 ° | 63.75 ° | 63.75 ° | 63.75 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1167 mm | 1191 mm | 1215 mm | 1240 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

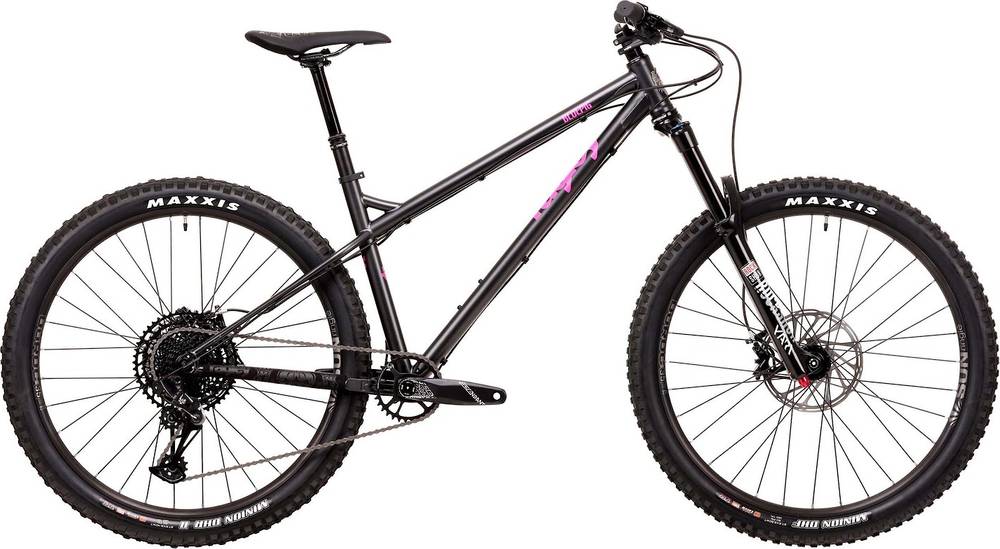

Blue Pig belongs to the Ragley Blue model. 4 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Blue Pig comes factory-installed with the RockShox Yari RC fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Blue Pig are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Blue Pig comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Blue Pig comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
