Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Yari RC
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Yari RC, 46mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano Deore M6100, 170mm length
Bottom Bracket
73mm English threaded
Chain
Shimano SLX M7100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Nukeproof Neutron wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Nukeproof Neutron wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Nukeproof Neutron wheelset
Spokes
Nukeproof Neutron wheelset
Tires
Front: Maxxis Minion DHF, 3C, EXO+, TR, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, TR, 27.5" x 2.4"
Brakes
Brakes
Shimano Deore M6120, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
Shimano Deore M6120
Cockpit
Stem
Ragley Stubbing V2, 50mm length
Handlebar
Ragley Alloy, Width: 780mm (SM/MD), 800mm (LG/XL)
Grips
Ragley, lock-on
Headset
ZS44/28.6 upper, EX44/40 lower
Seat
Saddle
Ragley Tracker
Seatpost
Brand-X Ascend dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 749 mm | 773 mm | 797 mm | 822 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 610.9 mm | 619.8 mm | 628.8 mm | 637.8 mm |
| Reach | 417 mm | 437 mm | 457 mm | 477 mm |
| Top Tube Length | 593 mm | 615.6 mm | 638.2 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.75 ° | 63.75 ° | 63.75 ° | 63.75 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1167 mm | 1191 mm | 1215 mm | 1240 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

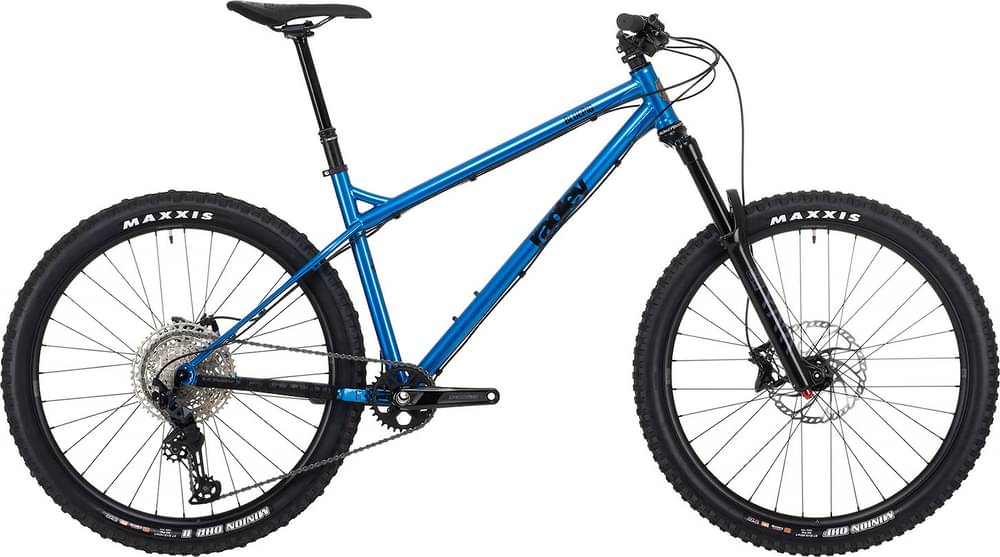

Blue Pig belongs to the Ragley Blue model. Ragley released 4 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Ragley Blue Pig 2021 bike is equipped with the RockShox Yari RC fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Blue Pig bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Blue Pig comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ragley model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
