Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Lyrik Select
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Lyrik Select RC, 46mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano SLX M7100, 170mm length
Bottom Bracket
73mm English threaded
Chain
Shimano SLX M7100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Nukeproof Horizon wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Nukeproof Horizon wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Nukeproof Horizon wheelset
Spokes
Nukeproof Horizon wheelset
Tires
Front: Maxxis Assegai, 3C, EXO+, TR, 27.5" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, TR, 27.5" x 2.4"
Brakes
Brakes
Shimano SLX M7120, 4-piston, 200mm front rotor, 180mm rear rotor
Brake Levers
Shimano SLX M7120
Cockpit
Stem
Ragley Stubbing V2, 50mm length
Handlebar
Ragley Alloy, Width: 780mm (SM/MD), 800mm (LG/XL)
Grips
Ragley, lock-on
Headset
ZS44/28.6 upper, EX44/40 lower
Seat
Saddle
Ragley Tracker
Seatpost
Brand-X Ascend dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.42 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 749 mm | 773 mm | 797 mm | 822 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 610.9 mm | 619.8 mm | 628.8 mm | 637.8 mm |
| Reach | 417 mm | 437 mm | 457 mm | 477 mm |
| Top Tube Length | 593 mm | 615.6 mm | 638.2 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 63.75 ° | 63.75 ° | 63.75 ° | 63.75 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1167 mm | 1191 mm | 1215 mm | 1240 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

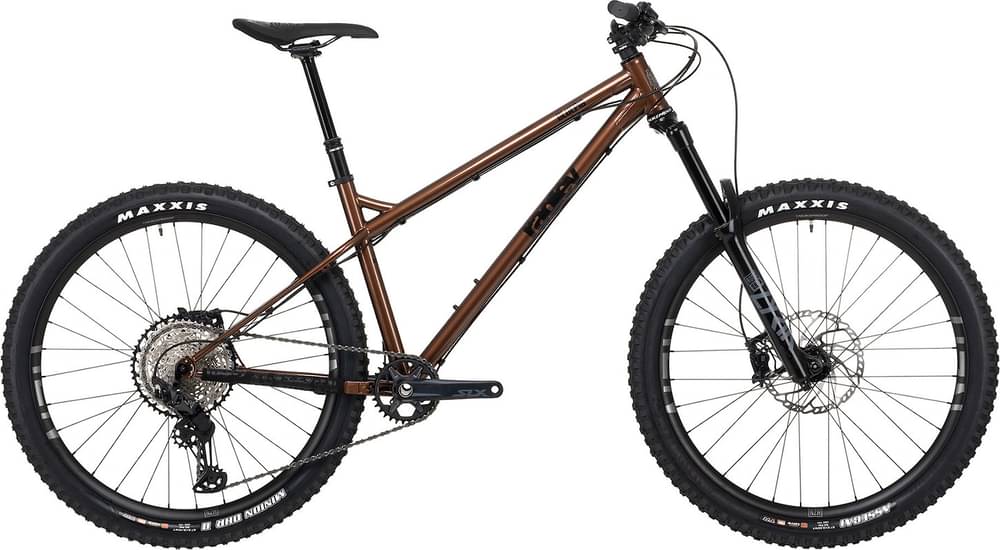

Model Overview
Blue Pig Race is a Ragley Blue model. Ragley released 4 bikes variations of this model so far. Take a sneak peek at all Ragley Blue bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Lyrik Select is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Blue Pig Race 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ragley Blue Pig Race has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Ragley Blue Pig Race comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
