Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Custom Formed Butted Tubing
Suspension Fork
Carbon Disc Road w/Alloy Steerer
Drivetrain
Rear Derailleur
Shimano Claris 8 Speed
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris Rapidfire Plus 8spd, Shimano SP41 Shift Housing
Cassette
Shimano 8spd (11-32t)
Crank
2PCS Alloy Forged 32/48t
Bottom Bracket
Sealed External
Chain
KMC HG40
Pedals
Wellgo Alloy Body/Steel Cage
Wheels
Front Hub
Formula Alloy Disc 32h
Rear Hub
Formula Alloy Disc 32h Cassette
Rims
Weinmann U28 Double Wall Disc
Spokes
14g Stainless Steel
Tires
Clement XPLOR USH 700x35C, 60TPI
Brakes
Brakes
ProMax Solve Hydraulic Disc Brake w/160mm Rotor
Brake Levers
ProMax
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8
Handlebar
Kalloy Alloy 15mm Rise, 31.8
Grips
Raleigh Comfort Lock-On
Headset
Integrated 1-1/8"
Seat
Saddle
Raleigh Series w/Chromo Rails
Seatpost
Raleigh 100 Series 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 0.67 mm | 0.67 mm | 0.68 mm | 0.68 mm |
| Front Center | 611 mm | 629 mm | 653 mm | 669 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 191 mm | 197 mm | 194 mm | 200 mm |
| Stack | 372 mm | 385 mm | 404 mm | 413 mm |
| Reach | 558 mm | 575 mm | 591 mm | 610 mm |
| Top Tube Length | 547 mm | 562 mm | 587 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1032 mm | 1051 mm | 1076 mm | 1092 mm |
| Bottom Bracket Drop | 75 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 752 mm | 777 mm | 812 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

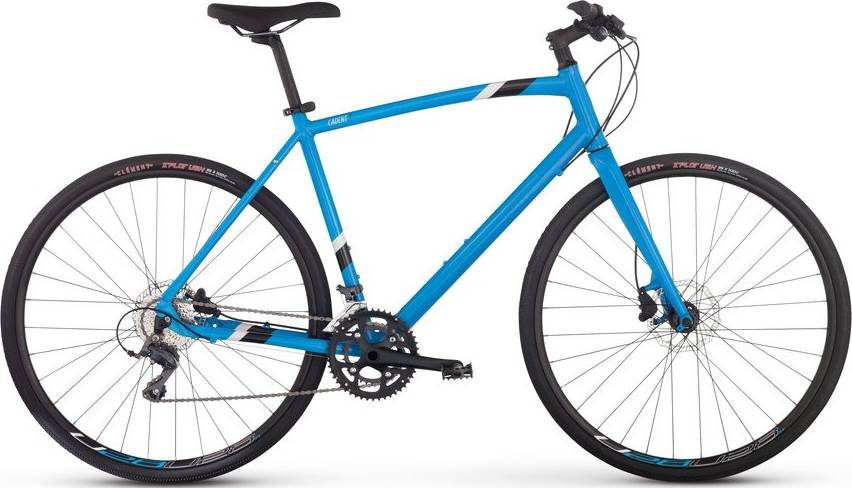

Cadent 3 is part of the Raleigh Cadent model. Raleigh released 21 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Cadent 24 2017 is the most affordable bike of this model and has a price of 279$. On the other hand, Raleigh Cadent Tandem 2017, is the most expensive and costs 1299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Raleigh released this model in 2017, its price was 699$. In conclusion, this bike price is 6.55% higher than the price of the average Fitness bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Cadent 3 2017 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Cadent 3 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
