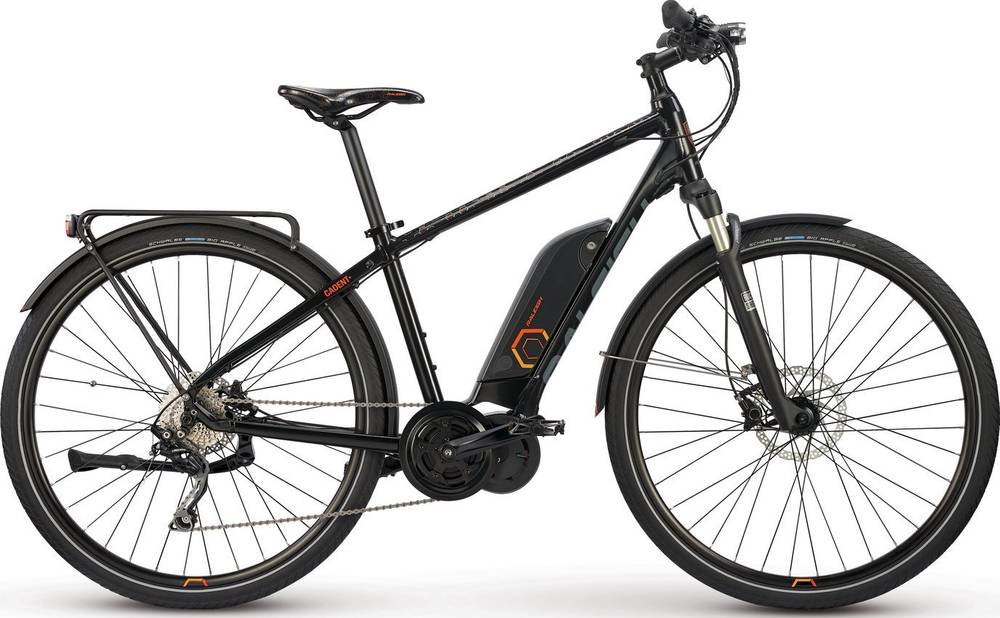

Raleigh Cadent iE Step Over 2018
2018 E-bike
Estimate price |
2,874$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Deore, TranzX -
Suspension Hardtail -
Motor 350W hub-drive -
Battery 417Wh DT Mounted -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fully Formed Lightweight Aluminum Alloy 6061 T6, Nested DT Battery
Suspension Fork
Rockshox Paragon, Solo Air, 65mm Travel
Drivetrain
Rear Derailleur
Shimano Deore SGS
Shift Levers
Shimano Deore M610, 10 Speed
Cassette
Formed Spider, 42tooth w/ chainguard
Crank
Forged Alloy for TranzX System
Chain
KMC x10ePT Ebike Specific
Pedals
Alloy, sealed bearing
Wheels
Front Hub
VP Modus, Sealed Bearing, W/ QR
Rear Hub
VP Modus, Sealed Bearing, W/ QR
Rims
700c U28, disc specific
Spokes
Stainless
Tires
700X50c Schwalbe Big Apple
Brakes
Brake Levers
Shimano M365
Cockpit
Stem
Raleigh Aluminum Alloy, 3d forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head
Motor & Battery
Motor
TranzX M16 Center Mount 350W, Throttle Compatible
Battery
417Wh DT Mounted
Remote
TranzX info screen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.59 mm | 1.59 mm |
| Front Center | 663 mm | 673 mm | 683 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 85 mm | 85 mm |
| Stack | 640 mm | 640 mm | 650 |
| Reach | 393 mm | 403 mm | 410 mm |
| Top Tube Length | 602 mm | 612 mm | 622 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 170 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1133 mm | 1143 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 761 mm | 795 mm | 832 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Cadent iE Step Over completes the Raleigh E Cadent model. 2 e-bikes variations carry this model name so far. You can easily view all of the Raleigh E Cadent e-bikes models from 2018, here.
Model range prices
Raleigh Cadent iE Step Thru 2018 is the most affordable e-bike of this model and has a price of 2699$. On the other hand, Raleigh Cadent iE Step Over 2018, is the most expensive and costs 2874$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Raleigh released this model in 2018, its price was 2874$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that Cadent iE Step Over price is 17.16% higher.
Overview of components
Fork
The RockShox Paragon Gold RL is included from the factory. It has a travel distance of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Cadent iE Step Over are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cadent iE Step Over has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
