Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Acera, Altus -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700c, Mixte Twin Top Tube Frame, Steel
Suspension Fork
Steel with Die Cast Drop Outs
Drivetrain
Rear Derailleur
Shimano Acera
Shift Levers
Shimano 8 Speed, SL-M310 Right Only
Cassette
Alloy, 42 tooth
Crank
Forged Alloy, Three Piece, 104BCD with Guard
Bottom Bracket
Sealed Cartridge
Chain
KMC Z50
Pedals
Alloy Platform
Wheels
Front Hub
Alloy, 32 Hole, Nutted
Rear Hub
Alloy, 32 Hole, Nutted
Spokes
Black, 14g
Tires
Kenda K193, 700 x 32c
Brakes
Brakes
Promax, Alloy Dual Pivot
Brake Levers
Promax BL-42, Alloy
Cockpit
Stem
Integrated with Handlebar, 7 Degree Rise
Handlebar
Alloy, Urban One Piece Bar and Stem, 620mm Wide, 12 Degree Sweep
Grips
Flangeless, Lock-On Comfort Grip, 135mm
Headset
Sealed, 1-1/8"
Seat
Saddle
Classic Road with Rivets
Seatpost
Alloy, Micro Adjust, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm |
| Front Center | 594 mm | 627 mm | 659 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 67 mm | 67 mm |
| Stack | 559 mm | 592 mm | 625 mm |
| Reach | 373 mm | 394 mm | 415 mm |
| Top Tube Length | 522 mm | 552 mm | 582 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 150 mm | 185 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1035 mm | 1068 mm | 1100 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 678 mm | 701 mm | 724 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

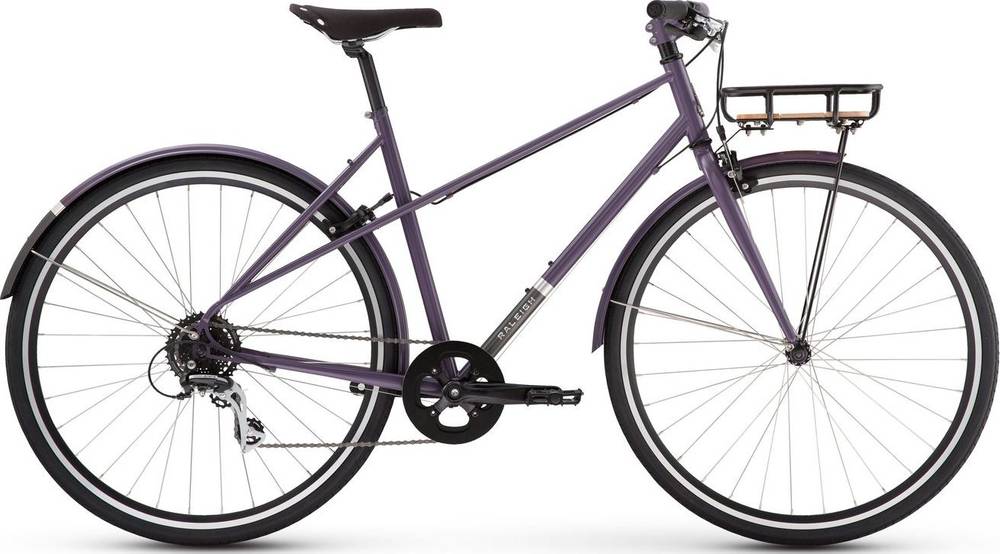

Carlton Mixte 8 is a Raleigh Carlton model. Raleigh launched 8 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Raleigh CARLTON MIXTE 2018 is the most economical model, with a starting price of 499$. Raleigh Carlton Mixte 8 2018 on the other hand costs 549$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 549$. Doing a quick comparison, we notice that Carlton Mixte 8 price is 38.8% smaller than the average cost of a Commuter bike.
Overview of components
Fork material
Carlton Mixte 8 has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The Carlton Mixte 8 2018 bike is equipped with 700c wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Carlton Mixte 8 comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
