Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Acera, Altus -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700c, Mixte Twin Top Tube Frame, Steel
Suspension Fork
Steel with Die Cast Drop Outs
Drivetrain
Rear Derailleur
Shimano Acera
Shift Levers
Shimano 8 Speed, SL-M310 Right Only
Cassette
Alloy, 42 tooth
Crank
Forged Alloy, Three Piece, 104BCD with Guard
Bottom Bracket
Sealed Cartridge
Chain
KMC Z50
Pedals
Alloy Platform
Wheels
Front Hub
Alloy, 32 Hole, Nutted
Rear Hub
Alloy, 32 Hole, Nutted
Spokes
Black, 14g
Tires
Kenda K193, 700 x 32c
Brakes
Brakes
Promax, Alloy Dual Pivot
Brake Levers
Promax BL-42, Alloy
Cockpit
Stem
Integrated with Handlebar, 7 Degree Rise
Handlebar
Alloy, Urban One Piece Bar and Stem, 620mm Wide, 12 Degree Sweep
Grips
Flangeless, Lock-On Comfort Grip, 135mm
Headset
Sealed, 1-1/8"
Seat
Saddle
Classic Road with Rivets
Seatpost
Alloy, Micro Adjust, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm |
| Front Center | 594 mm | 627 mm | 659 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 67 mm | 67 mm |
| Stack | 559 mm | 592 mm | 625 mm |
| Reach | 373 mm | 394 mm | 415 mm |
| Top Tube Length | 522 mm | 552 mm | 582 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 520 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 150 mm | 185 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1035 mm | 1068 mm | 1100 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 678 mm | 701 mm | 724 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

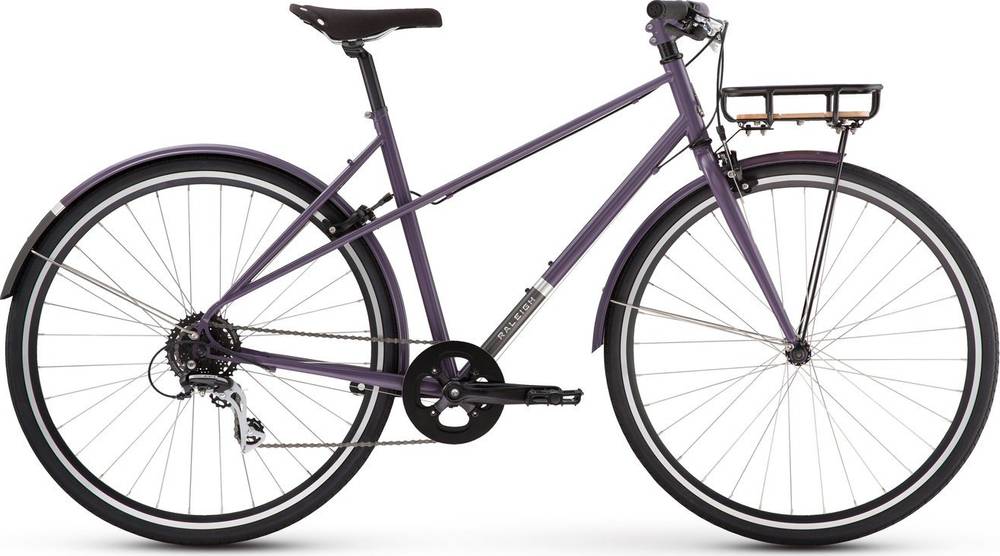

Carlton Mixte 8 is part of the Raleigh Carlton model. 8 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Raleigh Carlton 2019 has a starting price of 499$. Raleigh Carlton Mixte 8 2019 on the other hand is the most expensive at 549$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 549$. In conclusion, this bike price is 38.8% smaller than the price of the average Commuter bike.
Carlton Mixte 8 components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
As for the wheels, Raleigh Carlton Mixte 8 2019, has a 700c model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Carlton Mixte 8 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
