Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OS Steel Hybrid
Suspension Fork
OS Steel Threaded
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano Revo Twist 7spd
Cassette
Shimano 7spd MegaRange (13-34t)
Crank
Single Speed 40t w/Double Guard
Bottom Bracket
Sealed Cartridge
Chain
KMC Z51
Pedals
Raleigh Comfort Platform
Wheels
Front Hub
Formula Alloy QR 36h
Rear Hub
Formula Alloy QR 36h Freewheel
Rims
Weinmann QR17 Double Wall
Spokes
14g Stainless Steel
Tires
Kenda K-189 700x35c
Brakes
Brakes
Promax Alloy V-Brake
Brake Levers
Promax Alloy
Cockpit
Stem
Alloy Quill
Handlebar
Steel 50mm Rise x 630mm
Grips
Raleigh Comfort
Headset
Threaded 1-1/8"
Seat
Saddle
Raleigh Comfort
Seatpost
Alloy Micro Adjust 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.55 mm | 1.56 mm | 1.57 mm |
| Front Center | 609 mm | 624 mm | 640 mm | 656 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 75 mm | 75 mm |
| Stack | 570 mm | 589 mm | 608 mm | 626 mm |
| Reach | 372 mm | 380 mm | 390 mm | 399 mm |
| Top Tube Length | 556 mm | 571 mm | 586 mm | 601 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 350 mm | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1056 mm | 1071 mm | 1087 mm | 1103 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 527 mm | 681 mm | 716 mm | 751 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

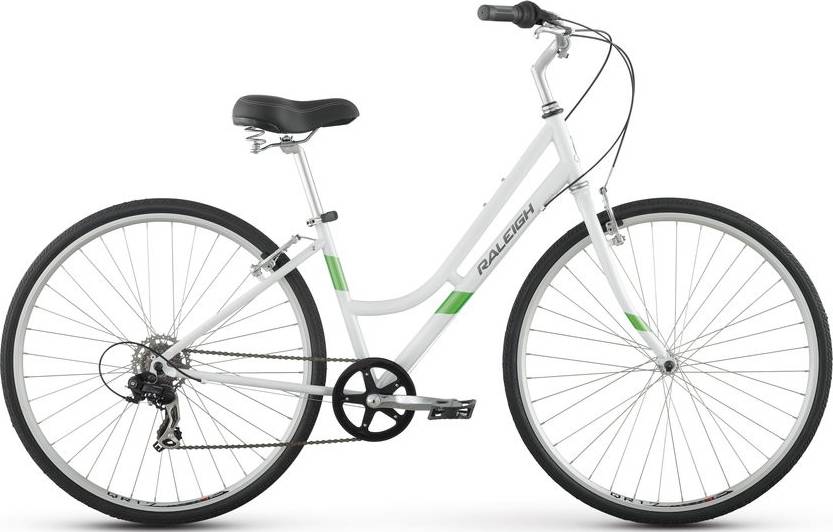

Detour 1 Step Thru belongs to the Raleigh Detour model. Raleigh launched 25 bikes of this model so far. Take a sneak peek at all Raleigh Detour bikes models from 2017, by clicking here.
Model range prices
Raleigh Detour 1 2017 is the most affordable bike of this model and has a price of 299$. On the other hand, Raleigh Detour 3 Step Thru 2017, is the most expensive and costs 499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Comfort bikes average price
If you want to purchase a solid Comfort bike, it is important to know that the average cost is 360$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Raleigh released this model in 2017, its price was 299$. In conclusion, this bike price is 20.4% smaller than the price of the average Comfort bike.
Overview of components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Detour 1 Step Thru bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Detour 1 Step Thru has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
