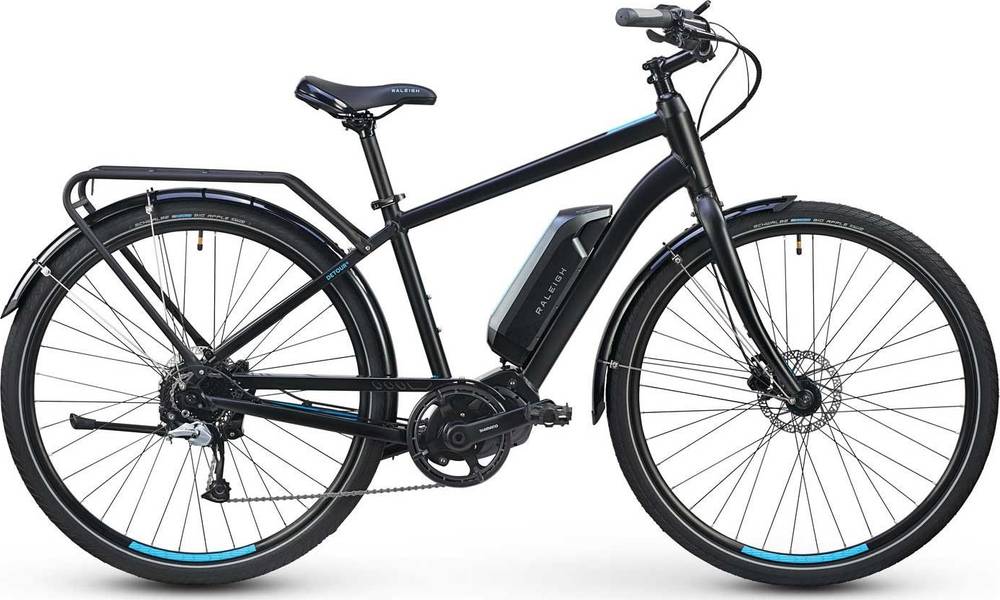

Raleigh Detour iE Step Over 2019
2019 E-bike
Estimate price |
2,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Acera, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT-E6010, Downtube type, 418Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Formed 6061 T6 Aluminum Alloy, Disc Brake, Integrated HeadTube
Suspension Fork
Aluminum Alloy Oversize Blades, Disc Brake
Drivetrain
Rear Derailleur
Shimano Acera M300, SGS
Shift Levers
Shimano Acera M300, 9 Speed, Optical Display
Cassette
Shimano STePS, 44 tooth
Crank
Shimano STePS E6100 Forged Alloy, Black
Bottom Bracket
STEPS, press-fit
Chain
KMC x9ePT, Ebike Specific
Pedals
PP Body, Reienforced, Sealed Bearing
Wheels
Front Hub
Sealed Bearing, Disc brake, 36 Hole, Quick Release
Rear Hub
Sealed Bearing, Disc brake, 36 Hole, Quick Release
Rims
700c Double Wall Alloy, Black Annodized, Schrader Valve
Spokes
Black w/Silver Nipples
Tires
700X50c Schwalbe Big Apple, Black
Brakes
Brakes
Tektro Dual Pistom Hydraulic Disc Brake, w/ 160mm Rotors
Brake Levers
Tektro Hydraulic Disc Brake Levers
Cockpit
Stem
Alloy, Heads Up Comfort
Handlebar
Alloy Riser, w/Comfort Backswept Bend
Grips
Ergo Rubber Type
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Ergo Comfort
Seatpost
Alloy, 350mm
Motor & Battery
Motor
Shimano Steps E6100, 250W
Battery
Shimano BT-E6010, Downtube type, 418Wh
Remote
Shimano SC-E6100, LCD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.48 mm |
| Front Center | 646 mm | 671 mm |
| Rake | 45 mm | 45 mm |
| Trail | 71 mm | 71 mm |
| Stack | 611 mm | 611 mm |
| Reach | 387 mm | 412 mm |
| Top Tube Length | 574 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 170 mm |
| Chainstay Length | 489 mm | 489 mm |
| Wheelbase | 1126 mm | 1151 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 731 mm | 763 mm |
| Wheels | 700 | 700 |
Model Overview
Detour iE Step Over completes the Raleigh E Detour model. There are 7 e-bikes that carry this model name. You can easily view all of the Raleigh E Detour e-bikes models from 2019, here.
Model range prices
Raleigh Detour iE Step Thru 2019 is the most economical model, with a starting price of 2299$. Raleigh Detour iE Step Over 2019 on the other hand costs 2299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Comfort e-bikes average price
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2019 and its price was 2299$. Comparing the average cost of a Comfort e-bike to this one, you will see that Detour iE Step Over price is 17.48% higher.
Overview of components
Fork material
Detour iE Step Over has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Detour iE Step Over are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Detour iE Step Over is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
