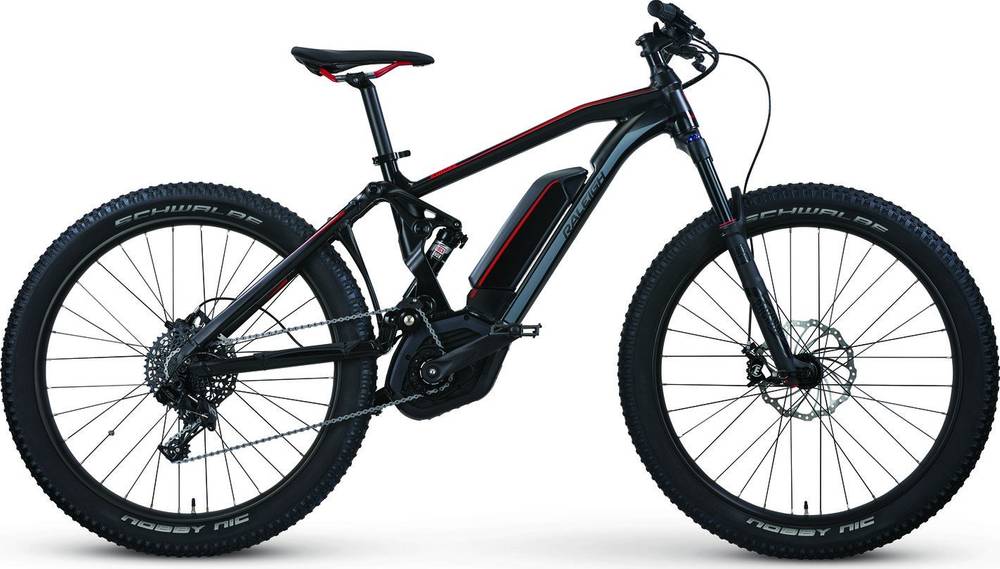

Raleigh Kodiak iE eMTB (2018) 2018
2018 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Reba
-
Groupset NX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack 500Wh, DT Mount. -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 link all mountain design. 130mm of rear wheel travel.
Suspension Fork
Rock Shox REBA 130mm Solo Air
Rear Shock
Rock Shox RT3
Drivetrain
Rear Derailleur
SRAM NX, Wide Range, Roller Clutch
Shift Levers
SRAM NX 11 Speed
Cassette
Forged Spider, 18tooth w/ chainguard, steel
Crank
Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x11ePT, Ebike Specific
Pedals
Alloy, sealed bearing
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle, Boost 110
Rear Hub
Formula, Sealed Bearing, Thru Axle, Boost 148
Rims
27.5", 45mm ID, Disc Specific
Spokes
Stainless
Brakes
Brakes
Magura Fifty4, 4 piston front 203mm rotor, 2 piston rear 180mm rotor
Brake Levers
Magura Fifty4, HC 2 finger
Cockpit
Stem
Raleigh Aluminum Alloy, 3d forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head
Motor & Battery
Motor
Bosch Performance CX, 250W, 20MPH, Made in EU.
Battery
Bosch Powerpack 500Wh, DT Mount.
Remote
Bosch Purion, Compact Type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 305 mm | 305 mm |
| Front Center | 747 mm | 769 mm |
| Rake | 45 mm | 45 mm |
| Trail | 74 mm | 73 mm |
| Stack | 590 mm | 599 mm |
| Reach | 434 mm | 451 mm |
| Top Tube Length | 591 mm | 611 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 476 mm | 476 mm |
| Wheelbase | 1219 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Standover Height | 778 mm | 793 mm |
| Wheels | 27" | 27" |
About this model
Kodiak iE eMTB (2018) is part of the Raleigh E Kodiak model. 6 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Raleigh Kodiak iE eMTB (2018) 2018 is the most economical model, with a starting price of 4999$. Raleigh Kodiak Pro IE Emtb 2018 on the other hand costs 6249$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2018 and its price was 4999$. Doing a quick comparison, we notice that Kodiak iE eMTB (2018) price is 48.56% higher than the average cost of a Trail e-bike.
Kodiak iE eMTB (2018) components
Fork
This e-bike has the RockShox Reba fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox RT3 model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Kodiak iE eMTB (2018) 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Kodiak iE eMTB (2018) has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
