Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset Acera, Altus -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Raleigh Custom AL-6061 Custom Formed Tubing
Suspension Fork
Alloy Blades, w/Post Mount Disc, Internal Cable Routing
Drivetrain
Rear Derailleur
Shimano Acera M360
Shift Levers
Shimano M310 8-speed Trigger Shifter, Right Only
Cassette
Shimano 8 Speed, 11-34 Cassette
Crank
Alloy Forged 3PC 104BCD, 40t
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC 8sp
Pedals
Alloy Body, Cromo Spindle
Wheels
Front Hub
Alloy Quick Release Disc, 32 Hole
Rear Hub
Alloy Quick Release Disc, 32 Hole
Rims
Alloy DDM-5, 32h, 27.5", 28mm Wide Double Wall
Spokes
14g Stainless Steel w/Brass Nipples
Tires
Vee Tire Co. Zilent 27.5x47c, Wire Bead, 30 TPI
Brakes
Brakes
Tektro MD-M280 Mechanical Disc
Brake Levers
Tektro ML330
Cockpit
Stem
Forged Aluminum Alloy, 31.8mm Bar Clamp
Handlebar
Alloy, 31.8, 15mm Rise, 680mm Wide
Grips
MTB Lock-On with End Plugs
Headset
1 1/8"Internal Cartridge Bearing
Seat
Saddle
Redux Saddle
Seatpost
Alloy Micro Adjust, 27.2 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.43 mm | 1.46 mm |
| Front Center | 603 mm | 633 mm | 649 mm | 664 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 54 mm | 54 mm | 54 mm | 54 mm |
| Stack | 559 mm | 578 mm | 602 mm | 626 mm |
| Reach | 390 mm | 414 mm | 422 mm | 430 mm |
| Top Tube Length | 562 mm | 592 mm | 607 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 195 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1015 mm | 1047 mm | 1063 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 689 mm | 740 mm | 780 mm | 837 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

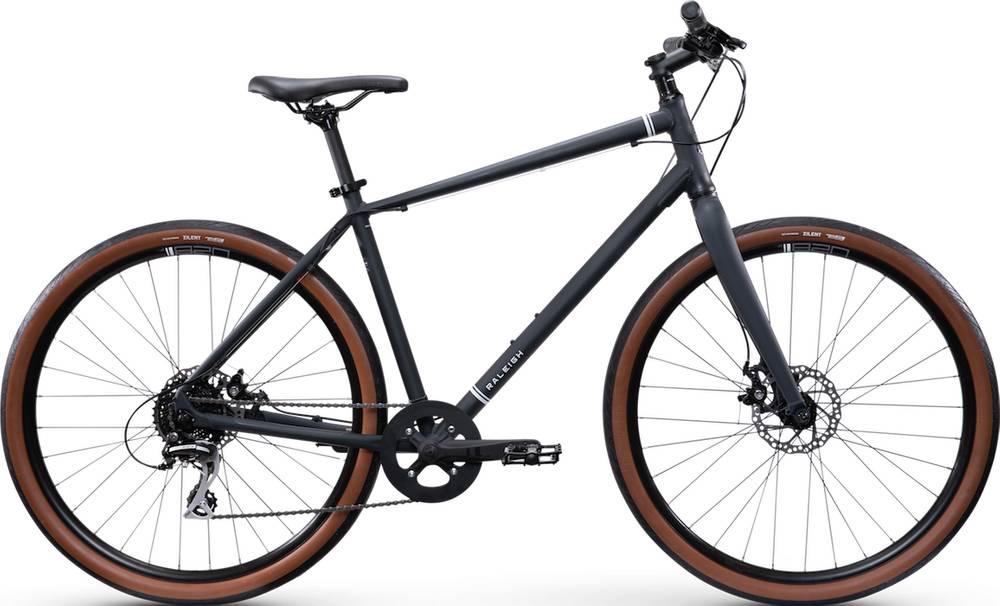

Redux 1 is part of the Raleigh Redux model. There are 17 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Raleigh Redux 24 2019 is the cheapest bike model and costs 329$. Raleigh Redux 2 Staple Edition 2019 is the most expensive one and costs 779$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Urban bikes average price
According to our math, the average price for a trustworthy General Urban bike is 499$. However, even though the average price of a General Urban bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 549$. Doing a quick comparison, we notice that Redux 1 price is 10.02% higher than the average cost of a General Urban bike.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The Redux 1 2019 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Redux 1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
