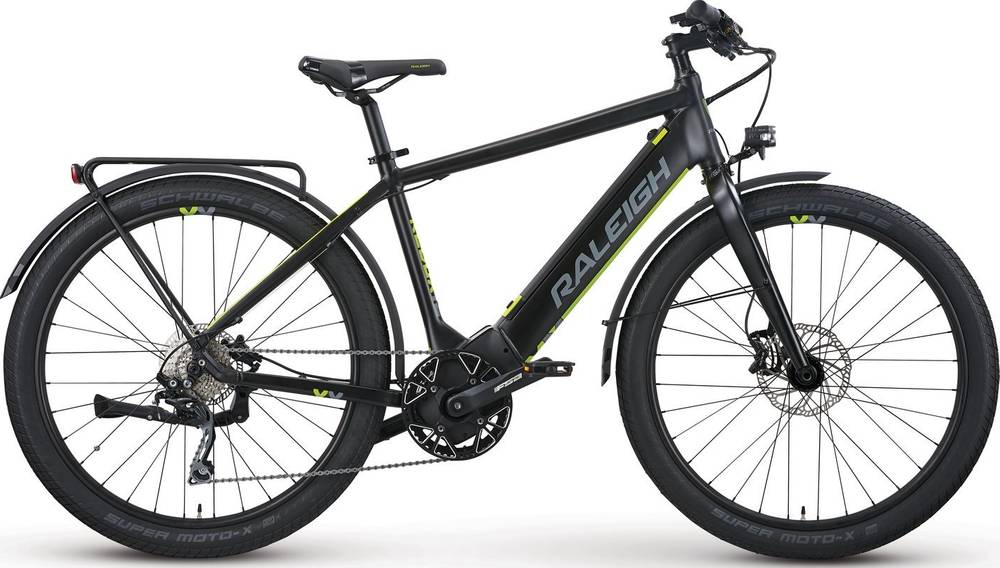

Raleigh Redux iE Step Over 2018
2018 E-bike
Estimate price |
3,749$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Groupset Deore -
Suspension Rigid -
Motor Brose 250W mid-drive -
Battery Fully Integrated & Removable, HTE, 497Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Formed 6061 T6 Oversize Aluminum Alloy, Thru Axle Dropout, Disc Brake Specific, Integrated Headtube
Suspension Fork
Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru axle
Drivetrain
Rear Derailleur
Shimano Deore M610, SGS
Shift Levers
Shimano Deore M610, 10- speed
Cassette
Forged Spider, 48tooth, alloy chainguard
Crank
Forged Alloy for Brose System
Chain
KMC x10ePT Ebike Specific
Pedals
Shoe Friendly Urban Design, Resin Body, Boron Axle
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle
Rear Hub
Formula, Sealed Bearing, Thru Axle
Rims
27.5", 25mm ID, Disc Specific
Spokes
Stainless
Tires
27.5"X2.4" Schwalbe Super Moto
Brakes
Brake Levers
Tektro M735
Cockpit
Stem
Raleigh Aluminum Alloy, 3d forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head
Motor & Battery
Motor
Brose Speed, 28mph, 250w, Made in Germany.
Battery
Fully Integrated & Removable, HTE, 497Wh
Remote
Brose Info Screen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.45 mm | 1.41 mm |
| Front Center | 664 mm | 664 mm | 679 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 614 mm | 614 mm | 614 mm |
| Reach | 422 mm | 422 mm | 437 mm |
| Top Tube Length | 611 mm | 611 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 175 mm | 175 mm | 175 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1132 mm | 1132 mm | 1147 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 764 mm | 798 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Redux iE Step Over is part of the Raleigh E Redux model. There are 6 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Raleigh Redux iE Step Thru 2018 has a starting price of 3749$. Raleigh Redux iE Step Over 2018 on the other hand is the most expensive at 3749$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Youth e-bikes average price
If you want to purchase a solid Youth e-bike, it is important to know that the average cost is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2018 and its price was 3749$. If we compare this with the average Youth e-bike cost we notice that the price is 97.84% higher.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Redux iE Step Over model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Raleigh Redux iE Step Over e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
