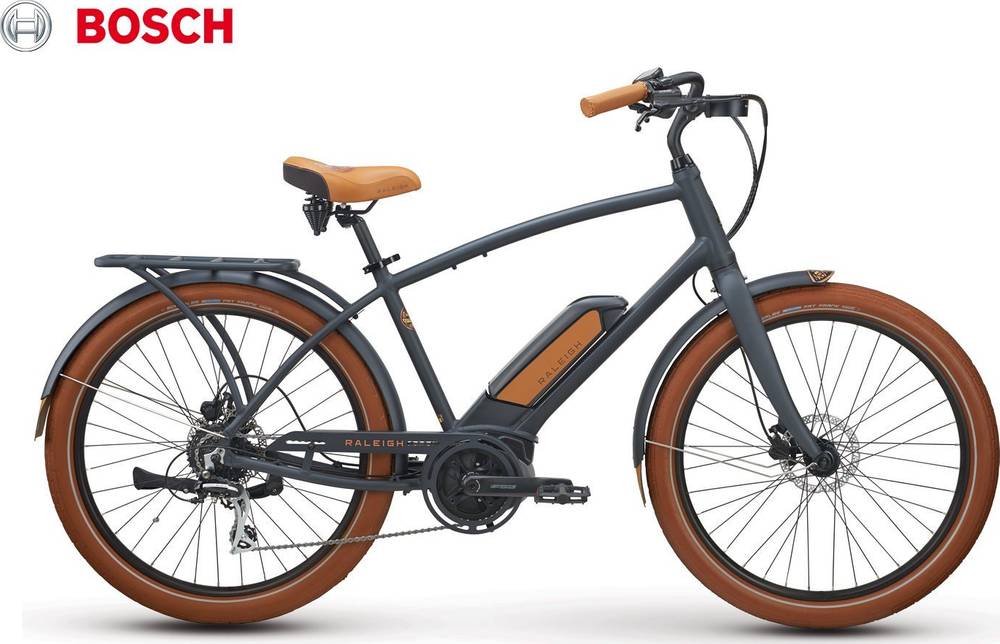

Raleigh Retroglide 2.0 iE Step Over 2019
2019 E-bike
Estimate price |
1,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Tourney, FSA -
Suspension Rigid -
Motor Bosch 250W 40Nm hub-drive -
Battery Bosch Powerpack 400 Wh, DT Mount -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Alloy, Relaxed Geometry and Style
Suspension Fork
26" Cruiser Style, Rigid Steel and Disc Brake Mounts
Drivetrain
Rear Derailleur
Shimano Tourney TX
Shift Levers
Shimano TX50 Thumb Shifter w/ Optical Display
Cassette
FSA 38 Tooth w/Chainguard
Crank
FSA Cast Alloy, 170mm
Chain
KMC X7 EPT
Pedals
Large Platform Style w/Resin Body
Wheels
Front Hub
Formula, Sealed Bearing, w/QR 36 Hole
Rear Hub
Formula, Sealed Bearing, w/QR 36 Hole
Rims
Alloy Double Wall, 36 Hole
Spokes
Black w/Silver Nipples
Tires
Kenda K-Rad 26x2.30 Blackwall
Brakes
Brakes
Tektro Mechanical Disc, 160mm Rotors
Brake Levers
Tektro Ergo 4 finger
Cockpit
Stem
Raleigh Aluminum Alloy, 80mm
Handlebar
Raleigh Aluminum Alloy, Cruiser Style
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Mechanism
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head, 300mm
Motor & Battery
Motor
Bosch Active Line, 250 Watts (295 Max), 40Nm Torque
Battery
Bosch Powerpack 400 Wh, DT Mount
Remote
Bosch Purion, Compact Type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.6 mm |
| Front Center | 637 mm |
| Rake | 48 mm |
| Trail | 85 mm |
| Stack | 575 mm |
| Reach | 359 mm |
| Top Tube Length | 618 mm |
| Seat Tube Angle | 66 ° |
| Seat Tube Length | 410 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 180 mm |
| Chainstay Length | 484 mm |
| Wheelbase | 1117 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 588 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Retroglide 2.0 iE Step Over is a Raleigh E Retroglide model. There are 11 e-bikes that carry this model name. You can easily view all of the Raleigh E Retroglide e-bikes models from 2019, here.
Model range prices
Raleigh Retroglide iE Step Over 2019 is the cheapest e-bike model and costs 1999$. Raleigh Retroglide Royale 2.0 iE Step Thru 2019 is the most expensive one and costs 2599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cruiser e-bikes average price
If you want an acceptable Cruiser e-bike you should know that the average price is 1697$. However, even if your budget is less than the average, you might still be able to get a top-quality Cruiser e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Raleigh Retroglide 2.0 iE Step Over price was 1999$. Comparing the average cost of a Cruiser e-bike to this one, you will see that Retroglide 2.0 iE Step Over price is 17.8% more expensive.
Overview of components
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
As for the wheels, Raleigh Retroglide 2.0 iE Step Over 2019, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
