Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Raleigh Custom Formed Aluminum Alloy Tubing
Suspension Fork
SR Suntour NVX-DS, 75mm Travel w/Preload Adjuster
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY510
Shift Levers
Shimano EF500 3x7 Speed Trigger Shifter
Cassette
Shimano 7spd (14-34t)
Crank
SR Suntour XCC-T208, 28/38/48t w/Chainguard
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC Z7
Pedals
Wellgo LU-C29G, Alloy Body and Cage, Chromoly Spindle
Wheels
Front Hub
Formula Alloy Disc QR 32h
Rear Hub
Formula Alloy Disc QR 32h
Rims
Alloy, DDM-1 Double Wall Disc
Spokes
14g Stainless Steel
Tires
Vee Tire Co. Easy Street, 700x42c
Brakes
Brakes
Tektro MD-M280 Mechanical Disc w/160mm Rotors
Brake Levers
Shimano ST-EF500
Cockpit
Stem
Alloy, 15-deg Rise, 25.4 Bore
Handlebar
Alloy, 30mm Rise, 9 deg Back, 680mm (660mm on step over models)
Grips
Raleigh Comfort
Headset
Semi Integrated 1-1/8"
Seat
Saddle
Raleigh City Series, Steel Rails
Seatpost
Alloy Micro Adjust 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 0.67 mm | 0.67 mm |
| Front Center | 611 mm | 629 mm |
| Rake | 48 mm | 48 mm |
| Trail | 191 mm | 197 mm |
| Stack | 372 mm | 385 mm |
| Reach | 558 mm | 575 mm |
| Top Tube Length | 547 mm | 562 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 432 mm | 432 mm |
| Wheelbase | 1032 mm | 1051 mm |
| Bottom Bracket Drop | 75 mm | 70 mm |
| Standover Height | 752 mm | 777 mm |
| Wheels | 700 | 700 |
Model Overview

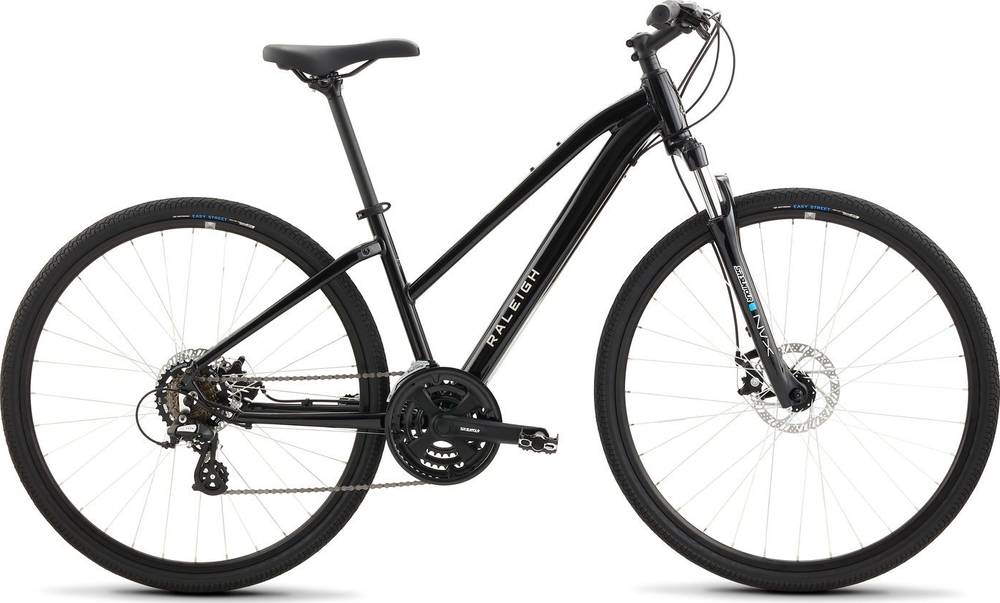

Route 1 Step Thru is part of the Raleigh Route model. 8 bikes variations carry this model name so far. You can easily view all of the Raleigh Route bikes models from 2019, here.
Model range prices
Raleigh Route 1 Step Thru 2019 is the cheapest bike model and costs 499$. Raleigh Route 3 2019 is the most expensive one and costs 749$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 499$. Comparing the average cost of a Hybrid bike to this one, you will see that Route 1 Step Thru price is 12.63% smaller.
Route 1 Step Thru components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Route 1 Step Thru are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Route 1 Step Thru comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
