Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Elite Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Monocoque Front Triangle w/ 100mm Travel, Carbon Link and Seatstay, Raleigh E-Thru and Tapered HT
Suspension Fork
Fox Performance Elite 32 FLOAT 3 Pos Lever w/ Open Mode Adj, 15QR, 100mm Travel
Drivetrain
Rear Derailleur
Shimano XT RD-M8000 Shadow Plus/11spd
Front Derailleur
Shimano XT E-Type
Shift Levers
Shimano XT SL-M8000
Cassette
Shimano CS-M8000 11-40t
Crank
Shimano XT FC-M8000-2 36/22t
Bottom Bracket
Shimano External
Chain
Shimano CN-HG6000 11sp
Pedals
Test Ride Pedals
Wheels
Front Hub
American Classic MTB Tubeless 29" 15mm
Rear Hub
American Classic MTB Tubeless 29" 142x12mm
Rims
American Classic MTB Tubless 29"
Spokes
American Classic
Tires
Clement FRJ 29x2.25" Folding
Brakes
Brakes
Shimano XT, 180/160mm rotors
Brake Levers
Shimano XT BL-M8000
Cockpit
Stem
FSA Afterburner 3D Forged AL6061, 70/70/80/80mm
Handlebar
FSA Afterbruner Flat, Triple Butted AL-7075, W:740mm
Grips
Raleigh Closed-end Single Lock Ring
Headset
FSA NO.42 / ACB
Seat
Saddle
Prologo Nago Evo 141mm wide
Seatpost
Raleigh 200 Series, Dual Bolt, 27.2x350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 579 mm | 602 mm | 617 mm | 637 mm |
| Seat Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 787 mm | 787 mm | 787 mm | 787 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

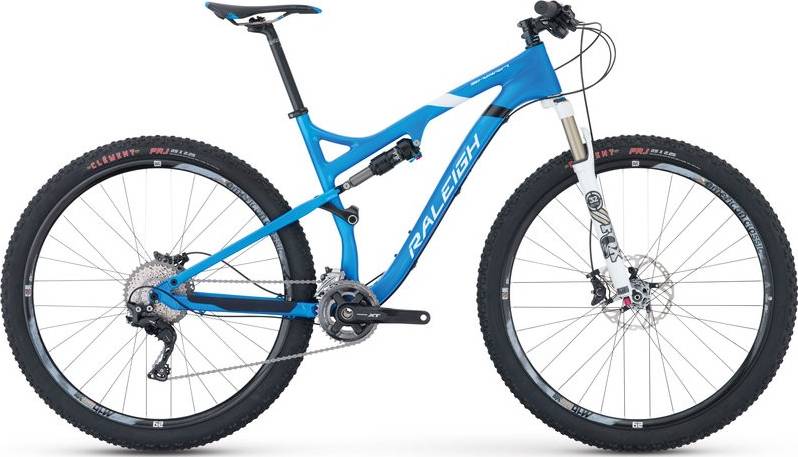

Skarn Pro is a Raleigh Skarn model. 4 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Skarn Expert 2017 is the most economical model, with a starting price of 1735$. Raleigh Skarn Pro 2017 on the other hand costs 4199$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Raleigh Skarn Pro price was 4199$. Doing a quick comparison, we notice that Skarn Pro price is 120.42% higher than the average cost of a Crosscountry bike.
Skarn Pro components
Fork
The Skarn Pro comes factory-installed with the Fox Performance Elite Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Skarn Pro are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Skarn Pro has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
