Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Yari RC
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
4130 Butted Chromoly w/CNC Dropouts, ISCG 05 Tabs, 1-1/8" HT
Suspension Fork
RockShox Yari RC, 27.5+, Lock out, 130mm
Drivetrain
Rear Derailleur
SRAM NX 11spd
Shift Levers
SRAM NX trigger
Cassette
SRAM NX (11-42t) 11spd
Crank
SRAM NX, 24mm spindle, 32t Narrow/Wide
Bottom Bracket
SRAM GXP
Chain
SRAM PC1130
Pedals
Wellgo Alloy Pedals
Wheels
Front Hub
Joytec Disc Sealed Bearing, 110x15mm QR, 32h
Rear Hub
Joytech Disc, Sealed Bearing, 148x12mm Cassette
Rims
Weinmann U50, 27.5+, 32h, 50mm wide
Spokes
14g Stainless MAC w/Brass Nipples
Tires
Kenda Havoc 27.5x2.8
Brakes
Brakes
TRP Slate T4, 180mm Rotors
Brake Levers
Shimano 506, 1-Finger Hydraulic
Cockpit
Stem
Raleigh 3D Forged Alloy, 60/60/70/70mm
Handlebar
Raleigh 200 Series 31.8, 15mm Rise, Width:720/720/740/740mm
Grips
Raleigh Closed-end Single Lock Ring
Headset
FSA Orbit MX Sealed Bearing Ahead 1-1/8"
Seat
Saddle
Raleigh Mountain Saddle, 140mm wide
Seatpost
JD 125mm stealth dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1116 mm | 1137 mm | 1158 mm | 1179 mm |
| Standover Height | 742 mm | 742 mm | 742 mm | 767 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

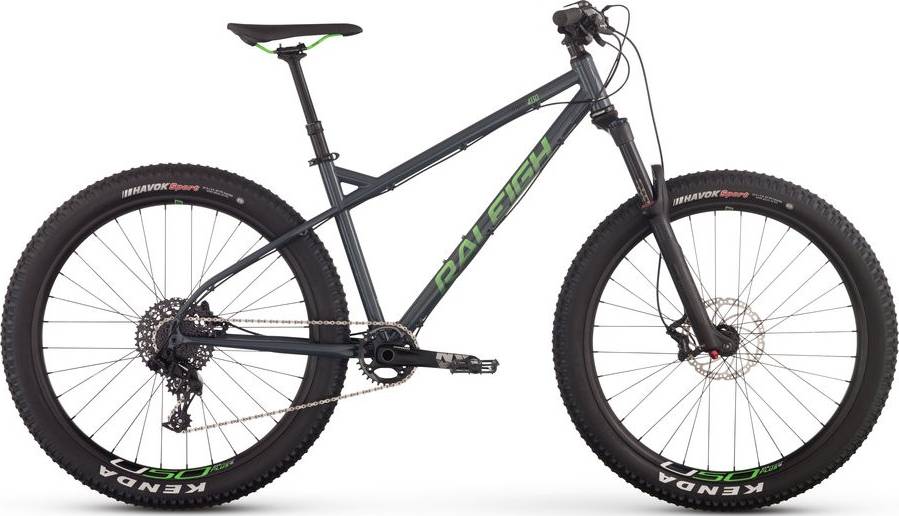

About this model
Tokul 4130 is a Raleigh Tokul model. There are 11 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Tokul 24 2017 is the cheapest bike model and costs 329$. Raleigh Tokul 4130 2017 is the most expensive one and costs 1599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Raleigh Tokul 4130 price was 1599$. Comparing this to the average Trail bike price, we see that the price is 72.73% lower.
Tokul 4130 components
Fork
The Tokul 4130 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Tokul 4130 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
