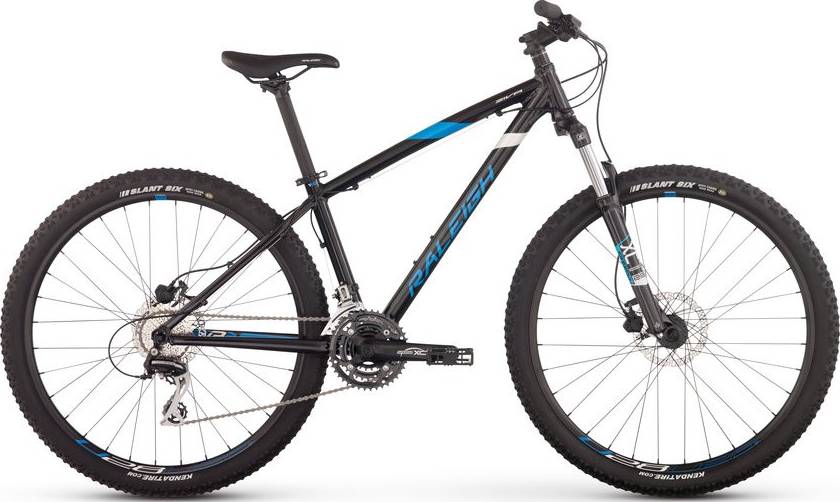

Raleigh Ziva 2017
2017 Mountain
Estimate price |
599$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Geometry AL-6061 SL Custom Butted Aluminum, Formed Downtube, CNC Machined Headtube
Suspension Fork
SR Suntour XCT, 27.5", 100mm
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Shimano Altus
Shift Levers
Shimano 8spd Trigger
Cassette
Shimano 8spd (11-32t)
Crank
SR Suntour XCT 42/32/22t
Bottom Bracket
Sealed Cartridge 73x122
Chain
KMC Z7
Pedals
Test Ride Pedals
Wheels
Front Hub
Joytech Alloy Disc QR 32h
Rear Hub
Joytech Alloy Disc QR 32h Cassette
Rims
Weinmann U28, 32h, 27.5", Double Wall
Spokes
14g Stainless Steel, w/ Brass Nipples
Tires
Kenda Slant Six, 27.5x2.1
Brakes
Brakes
Tektro Auriga Hydraulic Disc, 160mm rotors
Brake Levers
Tektro 2-Finger Women-Specific levers
Cockpit
Stem
Raleigh Alloy, 31.8mm, Lengths:80/80/90/90mm
Handlebar
Raleigh 200 Series 31.8, 15mm Rise, Width:660/660/680/680mm
Grips
Women-Specific Small Diamond
Headset
FSA IS-3 45deg upper, NO.11N Zerostack Lower, 1-1/8"
Seat
Saddle
Raleigh Women's Mountain Saddle w/ Steel Rail
Seatpost
Raleigh 100 Series, Dual Bolt, 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.44 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 310 mm |
| Front Center | 608 mm | 624 mm | 639 mm | 661 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 567 mm | 576 mm | 581 mm | 595 mm |
| Reach | 378 mm | 390 mm | 404 mm | 419 mm |
| Top Tube Length | 551 mm | 566 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1034 mm | 1050 mm | 1065 mm | 1088 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 45 mm |
| Standover Height | 736 mm | 761 mm | 786 mm | 821 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Ziva is part of the Raleigh Ziva model. 2 bikes variations carry this model name so far. You can easily view all of the Raleigh Ziva bikes models from 2017, here.
Model range prices
Raleigh Ziva 2017 is the cheapest bike model and costs 599$. Raleigh Ziva Comp 2017 is the most expensive one and costs 999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 599$. If we compare this with the average Crosscountry bike cost we notice that the price is 218.03% smaller.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 14 kg (30.86 lbs), the Ziva model is considerably heavier than average. In other words, this model is 12.9% heavier than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Raleigh Ziva 2017, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ziva comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
