Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Conquest 6061 alluminum frame with hydroformed and butted down and top tubes, forged dropouts with integrated post disc mounts, S bend seatstays
Suspension Fork
Redline carbon cyclocross fork with 1 1/8" alloy steerer and intergrated post style disc mounts
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4600 10SPD
Front Derailleur
Shimano Tiagra FD-4600, 31.8 BAND TYPE
Shift Levers
Shimano Tiagra ST-4600
Cassette
Shimano Tiagra 10SPD (12,13,14,15, 17,19,21,23,25,28)
Crank
Shimano CX50
Bottom Bracket
Shimano outboard
Chain
KMC X10
Wheels
Rims
Alex CXD7 disc specific cyclecross rims, 135mm rear spacing
Tires
Schwalbe Sammy Slick Race Guard 700x35c
Brakes
Brakes
TRP Spyre mechanical disc, 160mm rotor
Cockpit
Stem
XLC alloy 31.8mm, 7 degree
Handlebar
XLC alloy, 31.8mm clamp
Headset
FSA ZS-4D
Seat
Saddle
Selle Royal Seta M1
Seatpost
XLC alloy 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.42 mm | 1.46 mm | 1.43 mm | 1.49 mm | 1.52 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 565 mm | 584 mm | 594 mm | 591 mm | 610 mm | 608 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 49 mm | 64 mm | 64 mm | 59 mm | 59 mm | 54 mm | 50 mm |
| Stack | 536 mm | 542 mm | 541 mm | 559 mm | 569 mm | 596 mm | 622 mm |
| Reach | 371 mm | 371 mm | 382 mm | 383 mm | 399 mm | 399 mm | 408 mm |
| Top Tube Length | 516 mm | 526 mm | 536 mm | 553 mm | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73 ° | 73 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 73 ° | 71 ° | 71 ° | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 120 mm | 130 mm | 155 mm | 175 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 996 mm | 1015 mm | 1025 mm | 1022 mm | 1041 mm | 1039 mm | 1059 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 761 mm | 779 mm | 797 mm | 814 mm | 831 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |

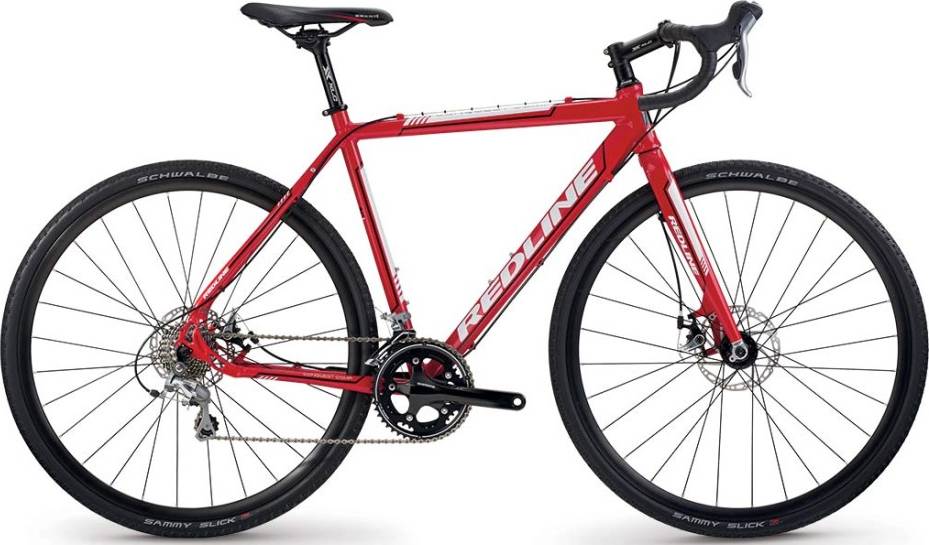

Model Overview
Conquest Comp completes the Redline Conquest model. There are 14 bikes that carry this model name. Take a sneak peek at all Redline Conquest bikes models from 2015, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Conquest Comp model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline Conquest Comp has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
