Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival 22 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Conquest Carbon with MSD (Milti Space Design), PF30 BB,Tapered headtube, and internal cable routing
Suspension Fork
Full Carbon with 1 1/8" - 1 1/2" tapered steerer utilizing RCT construction with 15mm thru axle
Drivetrain
Rear Derailleur
SRAM Rival 22
Front Derailleur
SRAM Rival 22, YAW, with chain spotter
Shift Levers
SRAM Rival 22
Cassette
SRAM 1170, 11-28t, 11s
Crank
SRAM Rival 22 YAW, 46/36t
Bottom Bracket
SRAM PF30
Chain
SRAM 1130, 11s
Wheels
Rims
Alex CXD4 disc alloy rims, tubeless compatible, 135mm rear with 15mm thru front
Tires
Schwalbe Smart Sam 700 X 35c
Brakes
Brakes
TRP HY/RD mechanically driven hydraulic disc, 160mm rotors
Cockpit
Stem
XLR Pro alloy, 31.8mm, 7 degree
Handlebar
XLC Pro alloy, 31.8mm, 125mm drop
Headset
FSA Orbit CX 1 1/8" upper 1 1/2" lower
Seat
Saddle
Selle Royal Setta Performa
Seatpost
XLC Pro alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 578 mm | 586 mm | 587 mm | 605 mm | 603 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 74 mm | 64 mm | 64 mm | 59 mm |
| Stack | 533 mm | 533 mm | 549 mm | 568 mm | 585 mm |
| Reach | 361 mm | 371 mm | 373 mm | 385 mm | 389 mm |
| Top Tube Length | 515 mm | 525 mm | 542 mm | 560 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 72 ° | 73 ° | 72 ° |
| Seat Tube Length | 480 mm | 510 mm | 520 mm | 540 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 107 mm | 107 mm | 121 mm | 141 mm | 155 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 988 mm | 996 mm | 997 mm | 1015 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 745 mm | 763 mm | 781 mm | 798 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

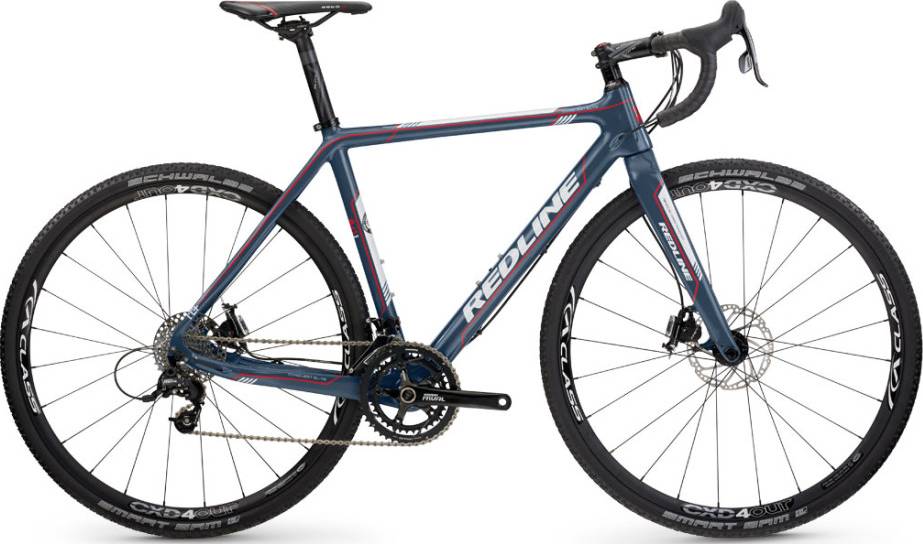

Conquest Elite belongs to the Redline Conquest model. Redline launched 14 bikes of this model so far. Take a sneak peek at all Redline Conquest bikes models from 2015, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
Conquest Elite has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Redline Conquest Elite 2015, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Redline Conquest Elite has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
