Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Conquest Carbon with MSD (Milti Space Design), PF30 BB,Tapered headtube, and internal cable routing
Suspension Fork
Full Carbon with 1 1/8" - 1 1/2" tapered steerer utilizing RCT construction with 15mm thru axle
Drivetrain
Rear Derailleur
SRAM Force CX1
Front Derailleur
N/A
Shift Levers
SRAM Force CX1 1X11 hydraulic levers
Cassette
SRAM 1170, 11-28t
Crank
SRAM Force CX1, PF30, 40t
Bottom Bracket
SRAM PF30
Chain
SRAM 1130, 11s
Wheels
Rims
Novatec CXD alloy disc, 15mm thru disc front hub, 135mm disc rear with 11s driver
Tires
Schwalbe Racing Ralph 700 x 33c
Brakes
Brakes
SRAM Force hydraulic disc, 160 front 140 rear rotors
Cockpit
Stem
Fizik Cyrano R5, 7 degree, 31.8mm clamp
Handlebar
Fizik Cyrano R5 Bull bend, 31.8mm
Headset
FSA Orbit CX 1 1/8" upper 1 1/2" lower
Seat
Saddle
Fizik Tundra M2 mg
Seatpost
Fizik Cyrano R5, 7 degree, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.44 mm | 1.47 mm | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 578 mm | 586 mm | 587 mm | 605 mm | 603 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 74 mm | 64 mm | 64 mm | 59 mm |
| Stack | 533 mm | 533 mm | 549 mm | 568 mm | 585 mm |
| Reach | 361 mm | 371 mm | 373 mm | 385 mm | 389 mm |
| Top Tube Length | 515 mm | 525 mm | 542 mm | 560 mm | 580 mm |
| Seat Tube Angle | 74 ° | 74 ° | 72 ° | 73 ° | 72 ° |
| Seat Tube Length | 480 mm | 510 mm | 520 mm | 540 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 107 mm | 107 mm | 121 mm | 141 mm | 155 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 988 mm | 996 mm | 997 mm | 1015 mm | 1013 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 745 mm | 763 mm | 781 mm | 798 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

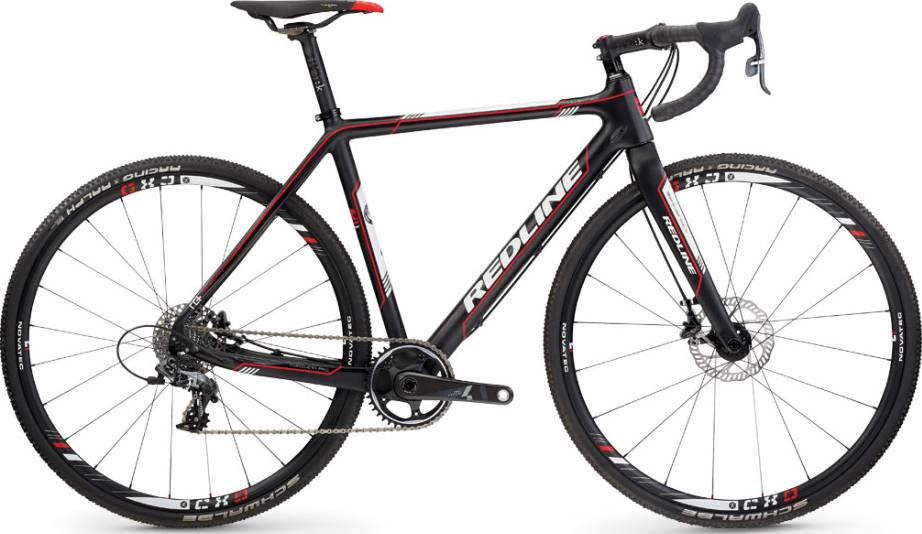

Model Overview
Conquest Pro is a Redline Conquest model. Redline released 14 bikes variations of this model so far. Take a sneak peek at all Redline Conquest bikes models from 2015, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Conquest Pro bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Conquest Pro has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
