Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 29" -
Groupset Tektro, SRAM -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Redline Full Chromoly 29" Single Speed
Suspension Fork
Redline 29" Chromoly, 1 1/8" Steerer
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
Tektro ML570 brake levers
Cassette
20T
Crank
SRAM 5D 32T
Bottom Bracket
Square taper 68mm, 110.5L
Chain
KMC Z33
Wheels
Rims
Alex 32h double wall rims, Alloy hubs with SS rear
Tires
Kenda Nevegal 29 X 2.2", wire bead
Brakes
Brakes
Tektro Aquila mechanical disc brakes with 160mm rotors
Cockpit
Stem
XLC Alloy 31.8, 10 degree rise, 4 bolt
Handlebar
XLC Pro alloy 31.8mm X 700mm width
Grips
Dual density lock on, 129mm
Headset
1 1/8" Conventional threadless, Steel
Seat
Saddle
Kore Fazer
Seatpost
XLC alloy L350 x OD26.8mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 642 mm | 661 mm | 681 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 585 mm | 601 mm | 620 mm | 639 mm |
| Seat Tube Angle | 74.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 534 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1082 mm | 1077 mm | 1096 mm | 1116 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 755 mm | 779 mm | 806 mm | 839 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

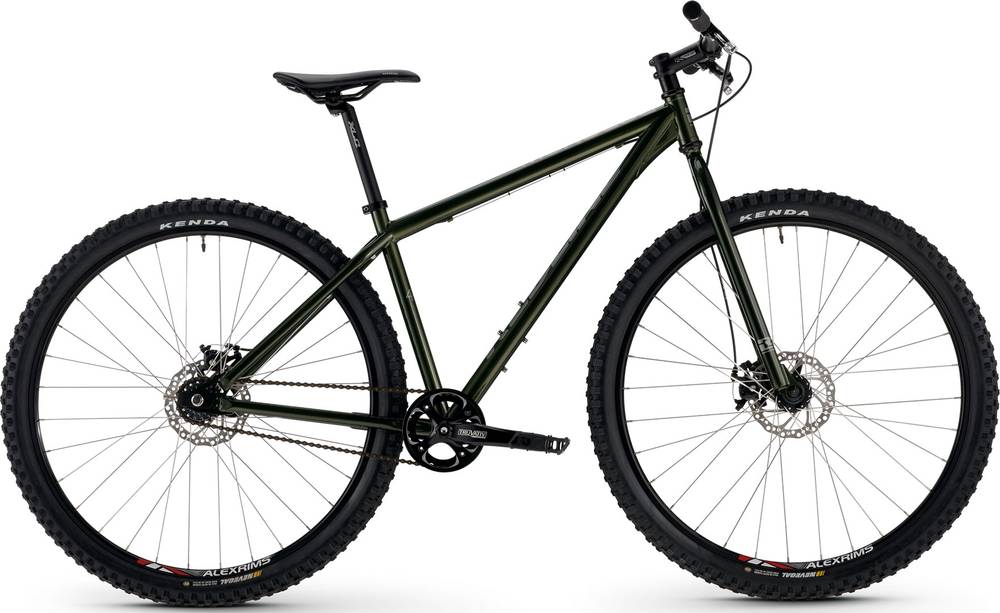

Monocog is a Redline Monocog model. Redline released 3 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Monocog components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The Monocog 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Redline Monocog is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
