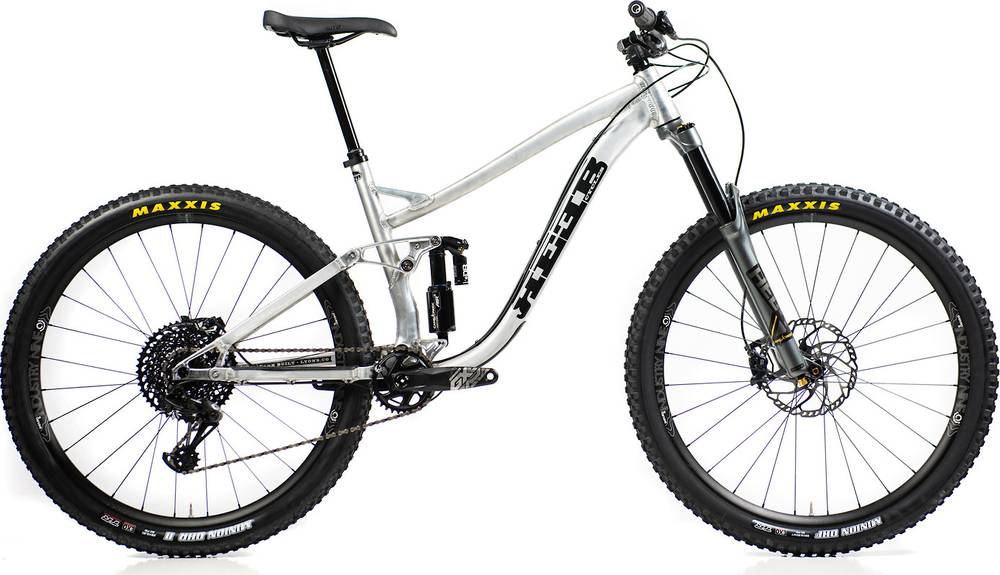

REEB SQWEEB v3 Long Travel X01 2020
2020 Mountain
Estimate price |
6,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Cane Creek HELM
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Cane Creek Helm Air
Rear Shock
Cane Creek DBAir CS or DBCoil CS, trunnion mount, 205mm x 60mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed, trigger
Cassette
SRAM X01 Eagle XG-1295, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Carbon Eagle DUB
Bottom Bracket
SRAM DUB, 73mm BSA threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Industry Nine Hydra, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Industry Nine Hydra, 110x15mm Boost front, 148x12mm Boost rear
Rims
Industry Nine Enduro S, includes Industry Nine tubeless valve stems and rim strips
Spokes
Industry Nine wheelset
Tires
Front: Maxxis Assegai, EXO, TR, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, TR, 29" x 2.3"
Brakes
Brakes
Shimano XT M8120, 4-piston, Shimano RT86 rotors (203mm front, 180mm rear)
Brake Levers
Shimano XT M8120
Cockpit
Stem
Industry Nine A35, 35mm bar clamp
Handlebar
Race Face Atlas 35 Riser, 35mm clamp diameter
Grips
Ergon GD1
Headset
Cane Creek Hellbender 70
Seat
Saddle
Ergon SME3
Seatpost
OneUp Components dropper, Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 755 mm | 789 mm | 816 mm | 848 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 124 mm | 125 mm | 124 mm | 124 mm |
| Stack | 608 mm | 617.5 mm | 626.5 mm | 635.6 mm |
| Reach | 427 mm | 457 mm | 479 mm | 507 mm |
| Top Tube Length | 576 mm | 610.5 mm | 635.5 mm | 665.3 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 415 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1185 mm | 1219 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 722 mm | 733 mm | 751 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SQWEEB v3 Long Travel X01 is part of the Reeb Sqweeb model. 34 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
REEB SQWEEB v3 Short Travel NX 2020 is the most economical model, with a starting price of 4599$. REEB SQWEEB v3 Long Travel Enduro Race 2020 on the other hand costs 6699$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When REEB released this model in 2020, its price was 6399$. Doing a quick comparison, we notice that SQWEEB v3 Long Travel X01 price is 77.8% more expensive than the average cost of an Enduro bike.
Overview of components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The SQWEEB v3 Long Travel X01 has a rear shock with a travel of 150mm. The model Cane Creek DBAir CS or DBCoil CS is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, REEB SQWEEB v3 Long Travel X01 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the SQWEEB v3 Long Travel X01. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
