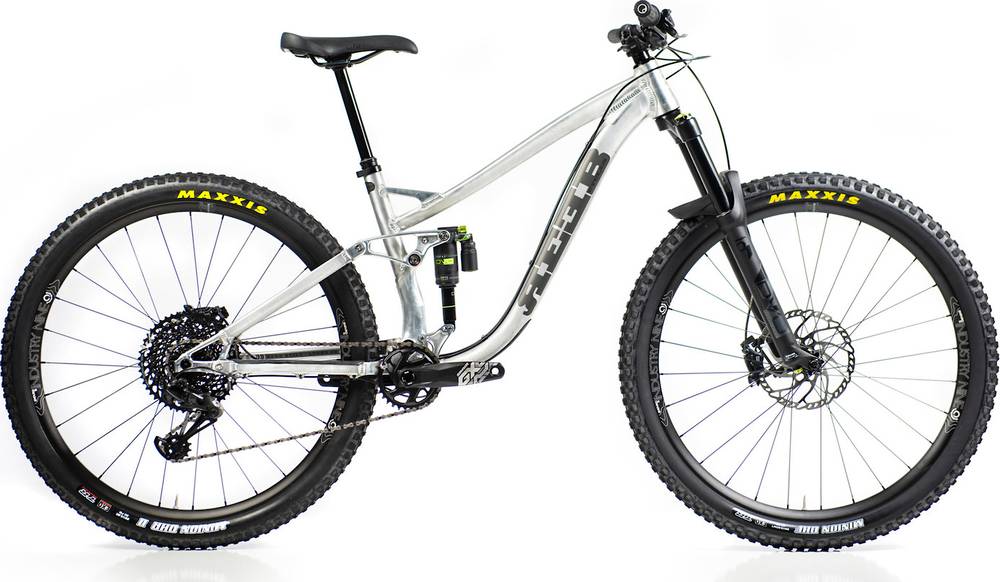

REEB SQWEEB v3 Short Travel XT 2020
2020 Mountain
Estimate price |
5,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork DVO Diamond
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
DVO Diamond
Rear Shock
DVO Topaz T3 Air, trunnion mount, 185mm x 50mm
Drivetrain
Rear Derailleur
Shimano XT M8100, 12-speed, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XT M8100, 12-speed, I-SPEC EV clamp
Cassette
Shimano XT M8100, 12-speed, 10-51 tooth
Crank
Shimano XT M8120
Bottom Bracket
Shimano XT M8120, 73mm BSA threaded
Chain
Shimano XT M8100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Industry Nine Hydra, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Industry Nine Hydra, 110x15mm Boost front, 148x12mm Boost rear
Rims
Industry Nine Trail S, includes Industry Nine tubeless valve stems and rim strips
Spokes
Industry Nine wheelset
Tires
Maxxis Rekon, EXO, TR, 29" x 2.4"
Brakes
Brakes
Shimano XT M8100, 2-piston, Shimano RT86 ICE TECH rotors (180mm front, 160mm rear)
Brake Levers
Shimano XT M8100
Cockpit
Stem
Race Face Aeffect R, 35mm bar clamp
Handlebar
Race Face Aeffect R Riser, 35mm clamp diameter, 780mm width, 20mm rise
Grips
Ergon GD1
Headset
Cane Creek Hellbender 70
Seat
Saddle
Ergon SME3
Seatpost
OneUp Components dropper, Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 755 mm | 789 mm | 816 mm | 848 mm |
| Rake | 52 mm | 51 mm | 52 mm | 52 mm |
| Trail | 114 mm | 115 mm | 114 mm | 114 mm |
| Stack | 608 mm | 617.5 mm | 626.5 mm | 635.6 mm |
| Reach | 427 mm | 457 mm | 479 mm | 507 mm |
| Top Tube Length | 576 mm | 610.5 mm | 635.5 mm | 665.3 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 415 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1185 mm | 1219 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 722 mm | 733 mm | 751 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SQWEEB v3 Short Travel XT completes the Reeb Sqweeb model. REEB launched 34 bikes of this model so far. You can easily view all of the Reeb Sqweeb bikes models from 2020, here.
Model range prices
The most economical model, the REEB SQWEEB v3 Short Travel NX 2020 has a starting price of 4599$. REEB SQWEEB v3 Long Travel Enduro Race 2020 on the other hand is the most expensive at 6699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 5699$. Doing a quick comparison, we notice that SQWEEB v3 Short Travel XT price is 106.34% higher than the average cost of a Trail bike.
Overview of components
Fork
The SQWEEB v3 Short Travel XT comes factory-installed with the DVO Diamond fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
REEB SQWEEB v3 Short Travel XT bike has the DVO Topaz T3 Air model installed, and has a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on SQWEEB v3 Short Travel XT are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The REEB model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
