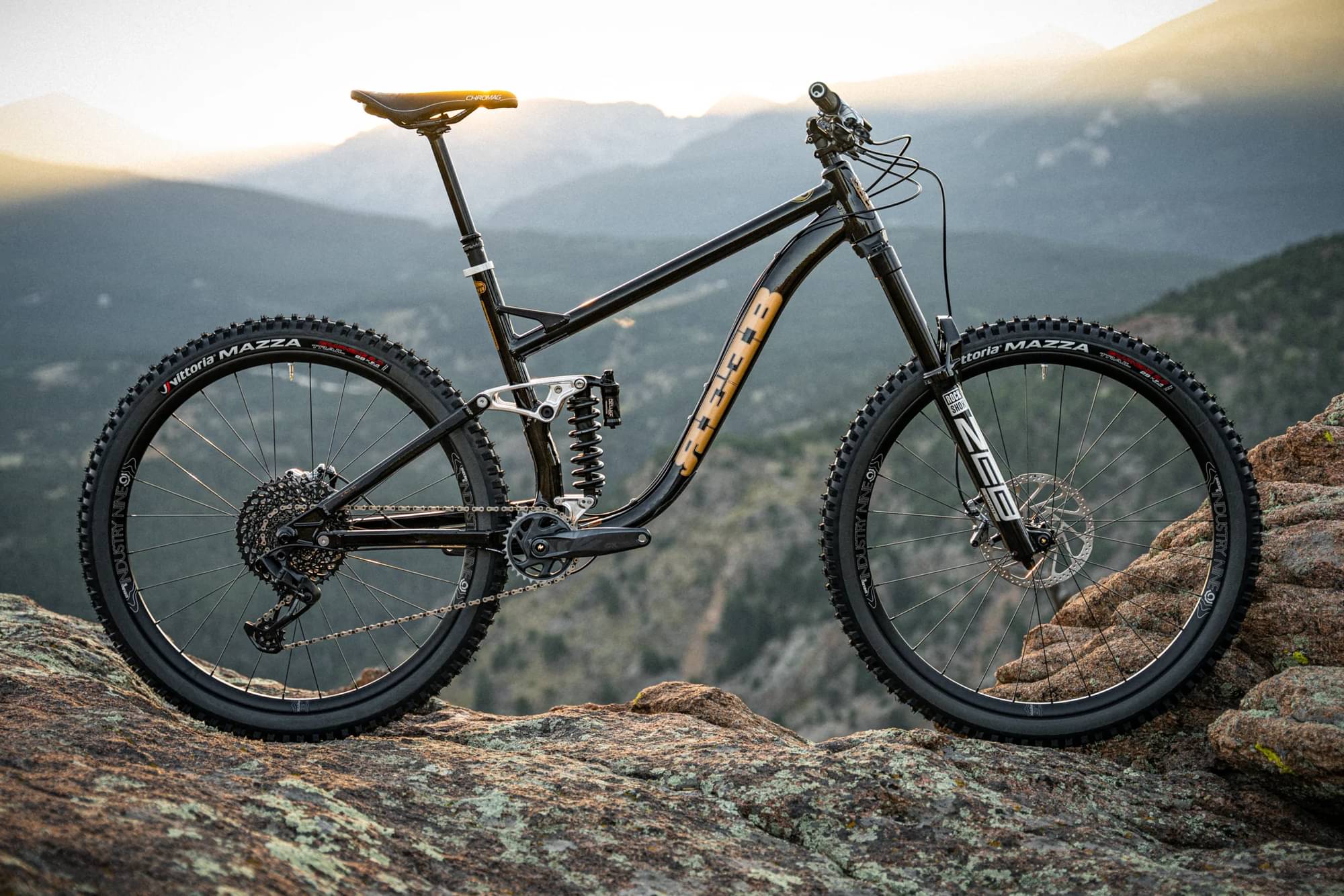

REEB Sqweeb V4 150mm X01 AXS 2022
2022 Mountain
Estimate price |
6,995$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sqweeb Long Travel, 7005 Aluminium
Suspension Fork
RockShox ZEB Ultimate, 160mm, 44mm Offset
Rear Shock
Rockshox Super Deluxe Ultimate Coil RCT, Trunnion 205/62.5
Drivetrain
Rear Derailleur
SRAM Eagle X01 AXS, 12 spd
Shift Levers
SRAM AXS Trigger 12 spd
Cassette
SRAM X01 Eagle XG-1295, 10-52 12 spd
Crank
SRAM X01 Carbon
Chain
SRAM X01 Eagle
Wheels
Rims
Industry Nine 1/1 Enduro Carbon
Tires
Vittoria Mazza, Trail Casing, 29x2.6 F, 29x2.4 R
Brakes
Brakes
TRP DH-R EVO, 4-Piston
Cockpit
Stem
Industry 9 A35
Handlebar
OneUp 35mm rise
Grips
OneUp
Headset
Cane Creek Hellbender 70
Seat
Saddle
Cromag Lift
Seatpost
OneUp Components Dropper, 150mm on small, 180mm on med, 210mm on L and XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 755.3 mm | 789.5 mm | 815.6 mm | 847 mm |
| Rake | 47 mm | 46 mm | 47 mm | 47 mm |
| Trail | 123 mm | 124 mm | 123 mm | 123 mm |
| Stack | 608 mm | 617.5 mm | 626.5 mm | 635.6 mm |
| Reach | 427 mm | 457 mm | 479 mm | 507 mm |
| Top Tube Length | 576 mm | 610.5 mm | 635.5 mm | 665.3 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 415 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1185 mm | 1219 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 722 mm | 733 mm | 751 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Sqweeb V4 150mm X01 AXS is part of the Reeb Sqweeb model. There are 34 bikes that carry this model name. Take a sneak peek at all Reeb Sqweeb bikes models from 2022, by clicking here.
Model range prices
Reeb Sqweeb V4 Mullet NX 2022 is the cheapest bike model and costs 5430$. Reeb Sqweeb V4 Long Travel Enduro Race 2022 is the most expensive one and costs 7900$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 6995$. Doing a quick comparison, we notice that Sqweeb V4 150mm X01 AXS price is 94.36% higher than the average cost of an Enduro bike.
Overview of components
Fork
Reeb Sqweeb V4 150mm X01 AXS 2022 bike is equipped with the RockShox ZEB Ultimate fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Sqweeb V4 150mm X01 AXS 2022 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Reeb Sqweeb V4 150mm X01 AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Reeb Sqweeb V4 150mm X01 AXS includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
