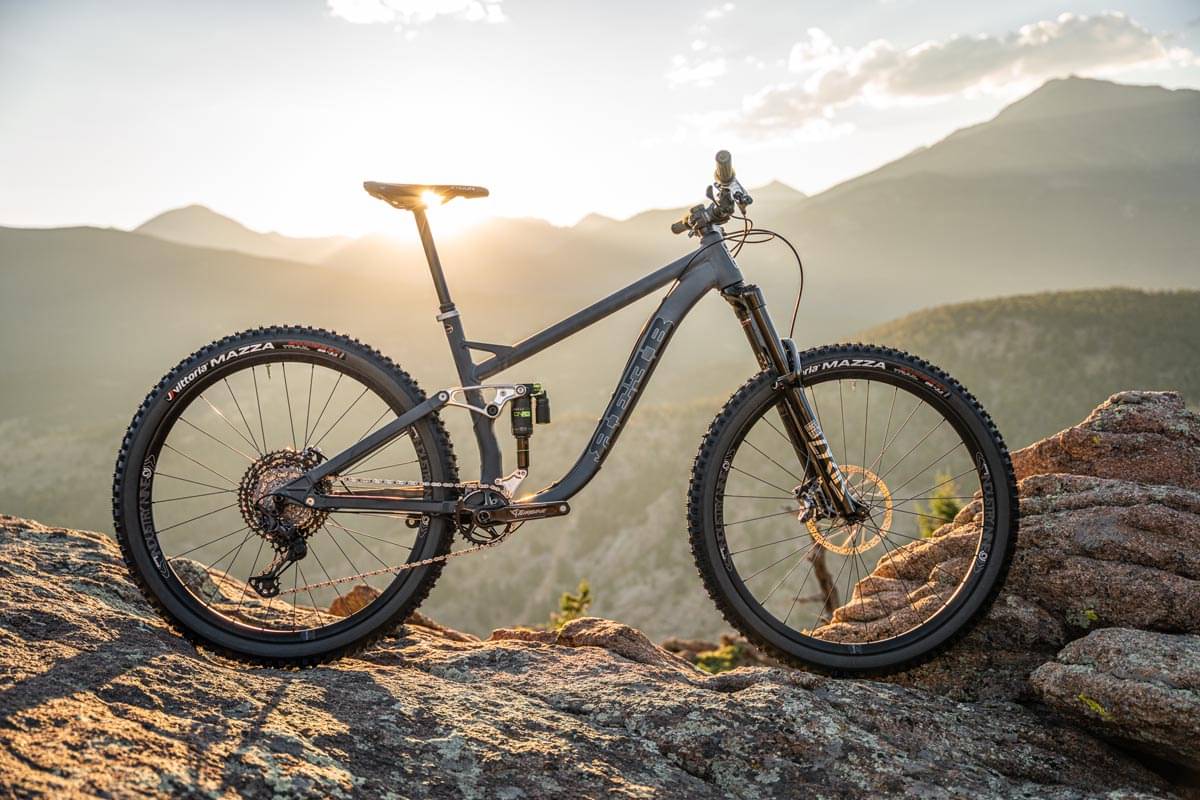

REEB Sqweeb V4 Short Travel X01 2022
2022 Mountain
Estimate price |
7,550$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 130mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sqweeb Short Travel, 7005 Aluminium, 130mm rear travel
Suspension Fork
Rockshox Lyrik Ultimate, 160mm, 42mm offset
Rear Shock
Rockshox Super Deluxe Ultimate RCT, DebonAir, Trunnion 185/55
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12 spd
Shift Levers
SRAM X01 Eagle, Trigger 12 spd
Cassette
SRAM X01 Eagle XG-1295, 10-52 12 spd
Crank
SRAM 32t X-Sync 2 Direct Mount
Bottom Bracket
Truvativ Descendant Carbon Eagle DUB
Chain
SRAM X01 Eagle
Wheels
Front Hub
Industry Nine Hydra
Rear Hub
Industry Nine Hydra
Rims
Industry Nine Enduro S, Hydra
Tires
Vittoria Agarro 29x2.6 R, Mazza 29x2.6 F, Trail Casings
Brakes
Brakes
TRP Trail EVO, 4-Piston
Cockpit
Stem
Industry 9 A35
Handlebar
RaceFace Atlas 35 Riser
Grips
Ergon GD1
Headset
Cane Creek Hellbender 70
Seat
Saddle
Ergon SM Enduro
Seatpost
OneUp Components Dropper, 150mm on small, 180mm on med, 210mm on L and XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 755.3 mm | 789.5 mm | 815.6 mm | 847 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 124 mm | 125 mm | 124 mm | 124 mm |
| Stack | 608 mm | 617.5 mm | 626.5 mm | 635.6 mm |
| Reach | 427 mm | 457 mm | 479 mm | 507 mm |
| Top Tube Length | 576 mm | 610.5 mm | 635.5 mm | 665.3 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 415 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1185 mm | 1219 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 722 mm | 733 mm | 751 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sqweeb V4 Short Travel X01 completes the Reeb Sqweeb model. 34 bikes variations carry this model name so far. You can easily view all of the Reeb Sqweeb bikes models from 2022, here.
Model range prices
Reeb Sqweeb V4 Mullet NX 2022 is the most affordable bike of this model and has a price of 5430$. On the other hand, Reeb Sqweeb V4 Long Travel Enduro Race 2022, is the most expensive and costs 7900$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 7550$. Comparing this to the average Trail bike price, we see that the price is 173.35% more expensive.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Sqweeb V4 Short Travel X01 has a rear shock with a travel of 130mm. The model Rockshox Super Deluxe Ultimate RCT is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Sqweeb V4 Short Travel X01 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Reeb Sqweeb V4 Short Travel X01 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Reeb Sqweeb V4 Short Travel X01 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Reeb Sqweeb V4 Short Travel X01 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
