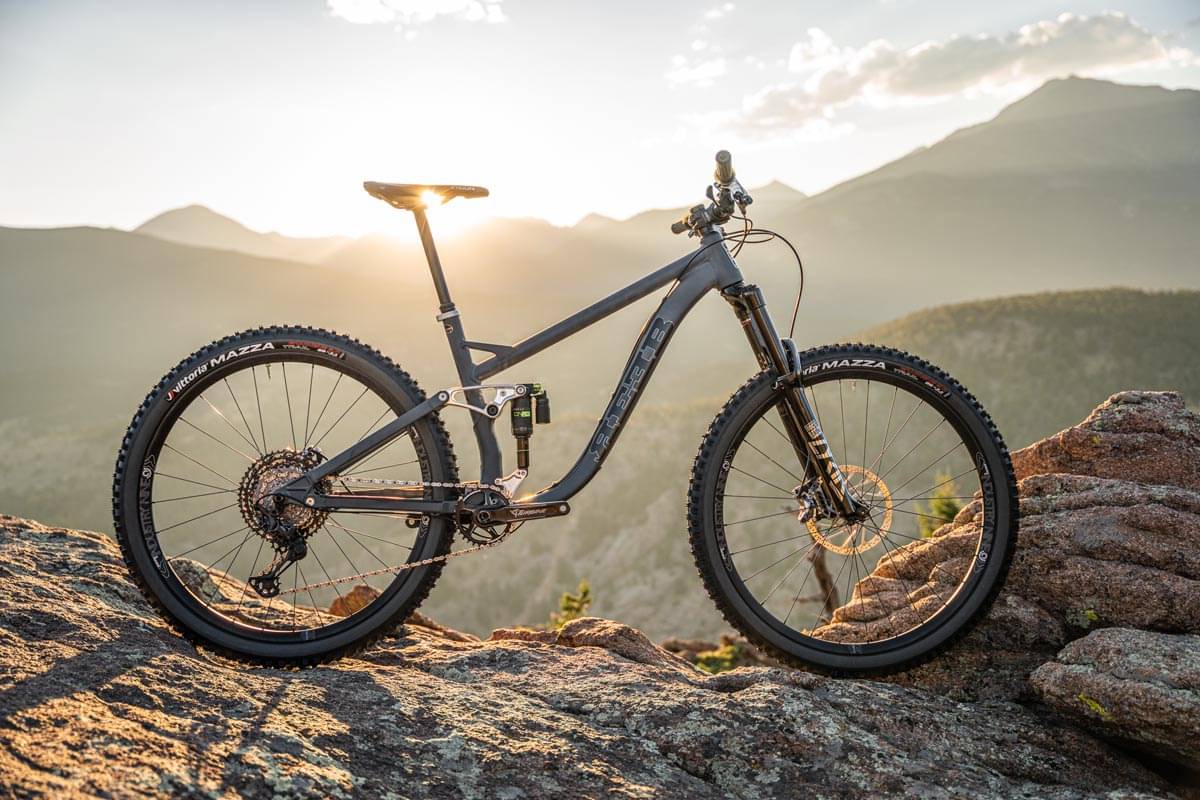

REEB Sqweeb V4 Short Travel XT 2022
2022 Mountain
Estimate price |
6,730$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 130mm -
Fork RockShox Lyrik Ultimate
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sqweeb Short Travel, 7005 Aluminium, 130mm rear travel
Suspension Fork
Rockshox Lyrik Ultimate, 160mm, 42mm offset
Rear Shock
Rockshox Super Deluxe Ultimate RCT, DebonAir, Trunnion 185/55
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, 12 spd
Shift Levers
Shimano XT SL-M8100-IL Right I-Spec EV, 12 spd
Cassette
Shimano XT CS-M8100, 10-51, 12 spd
Crank
Shimano XT SM-CRM85 34t 1x
Bottom Bracket
Shimano XT FC-M8120 Boost
Chain
Shimano XT CN-M8100 Chain, 12 spd
Wheels
Front Hub
Industry Nine Hydra
Rear Hub
Industry Nine Hydra
Rims
Industry Nine Enduro S, Hydra
Tires
Vittoria Agarro 29x2.6 R, Mazza 29x2.6 F, Trail Casings
Brakes
Brakes
TRP Trail EVO, 4-Piston
Cockpit
Stem
Spank Spoon 350, 35mm clamp
Handlebar
Spank Spoon 35, 800mm
Grips
Ergon GD1
Headset
Cane Creek Hellbender 70
Seat
Saddle
Ergon SM Enduro
Seatpost
OneUp Components Dropper, 150mm on small, 180mm on med, 210mm on L and XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 755.3 mm | 789.5 mm | 815.6 mm | 847 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 124 mm | 125 mm | 124 mm | 124 mm |
| Stack | 608 mm | 617.5 mm | 626.5 mm | 635.6 mm |
| Reach | 427 mm | 457 mm | 479 mm | 507 mm |
| Top Tube Length | 576 mm | 610.5 mm | 635.5 mm | 665.3 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 415 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1185 mm | 1219 mm | 1246 mm | 1278 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 722 mm | 733 mm | 751 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sqweeb V4 Short Travel XT belongs to the Reeb Sqweeb model. There are 34 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Reeb Sqweeb V4 Mullet NX 2022 is the most affordable bike of this model and has a price of 5430$. On the other hand, Reeb Sqweeb V4 Long Travel Enduro Race 2022, is the most expensive and costs 7900$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 6730$. Doing a quick comparison, we notice that Sqweeb V4 Short Travel XT price is 143.66% more expensive than the average cost of a Trail bike.
Sqweeb V4 Short Travel XT components
Fork
Reeb Sqweeb V4 Short Travel XT 2022 bike is equipped with the RockShox Lyrik Ultimate fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Super Deluxe Ultimate RCT rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Sqweeb V4 Short Travel XT are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Reeb Sqweeb V4 Short Travel XT is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Reeb Sqweeb V4 Short Travel XT includes a dropper post. Therefore, climbing or descending will be a breeze.
