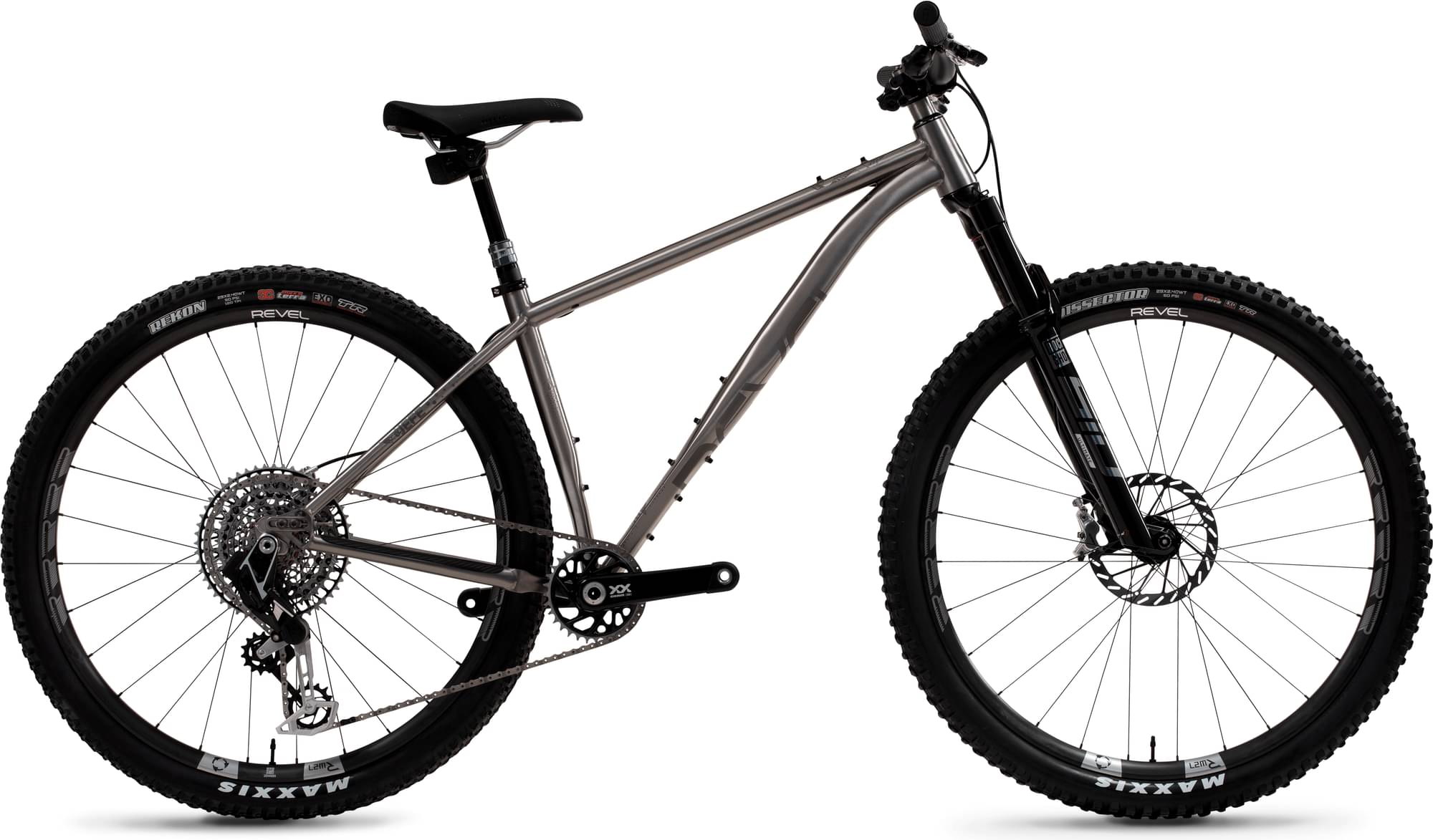

Revel El Jefe XX Eagle Transmission 2023
2023 Mountain
Estimate price |
9,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox SID Ultimate
-
Groupset XX, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel El Jefe 29" Hardtail
Suspension Fork
RockShox SID Ultimate 120mm
Drivetrain
Rear Derailleur
SRAM XX ET
Shift Levers
SRAM AXS Shifter Pod Ultimate
Cassette
SRAM XX ET T-Type
Crank
SRAM XX Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB BSA Wide
Chain
SRAM XX ET T-Type
Wheels
Rims
Zipp 1ZERO HiTOP SW Carbon
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM Level Ultimate Stealth
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-Alloy
Seatpost
Rockshox Reverb AXS, SM (31.6mm x 125mm), MD (31.6mm x 125mm), LG (31.6mm x 150mm), XL (31.6 x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 710 mm | 735 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 590 mm | 598 mm | 606 mm | 618 mm |
| Reach | 426 mm | 446 mm | 465 mm | 490 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm | 661 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 374 mm | 420 mm | 460 mm | 485 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 86 mm | 96 mm | 106 mm | 116 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 1112 mm | 1137 mm | 1158 mm | 1190 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 726 mm | 761 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 198 cm |
Model Overview
El Jefe XX Eagle Transmission is part of the Revel El Jefe model. There are 9 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Revel El Jefe SRAM GX EAGLE 2023 has a starting price of 5199$. Revel El Jefe XX Eagle Transmission 2023 on the other hand is the most expensive at 9599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Revel released this model in 2023, its price was 9599$. In conclusion, this bike price is 247.54% more expensive than the price of the average Trail bike.
Overview of components
Fork
Revel El Jefe XX Eagle Transmission 2023 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The El Jefe XX Eagle Transmission 2023 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel El Jefe XX Eagle Transmission is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Revel El Jefe XX Eagle Transmission bike has 4 sizes, in the range of 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the El Jefe XX Eagle Transmission. Therefore, climbing or descending will be a breeze.
