Bike details
Overview
Key information split into simple groups.

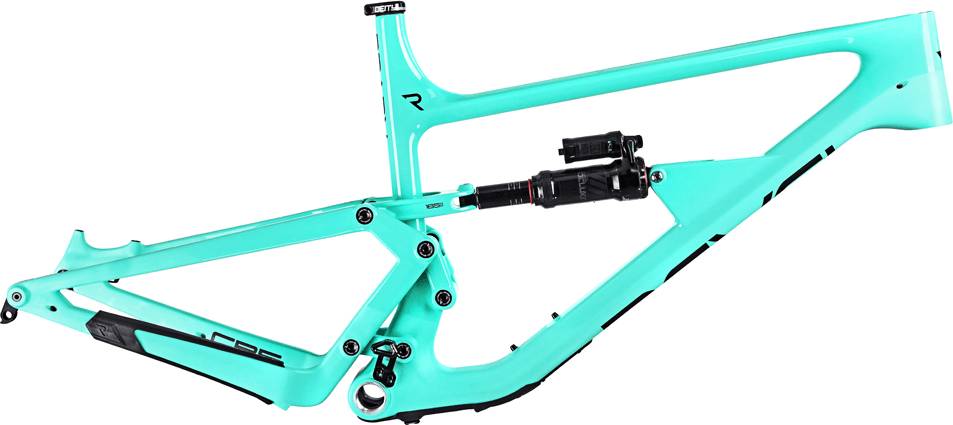

Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
180mm post mount / 203mm max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rail – Frame completes the Revel Rail model. Revel released 26 frames variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Revel Rail – Frame 2021 has a starting price of 2799$. Revel Rail – Frame and Fork 2021 on the other hand is the most expensive at 3499$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 2799$. If we compare this with the average Enduro frame cost we notice that the price is 47.7% higher.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
