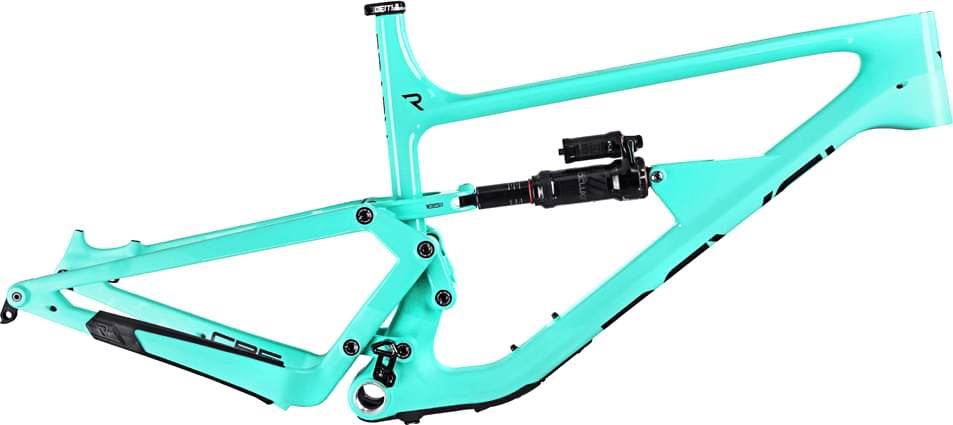

Revel Rail – Frame and Fork 2022
2022 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
180mm post mount / 203mm max
Seat
Seatpost
31.6mm (Use our size guide to choose the best dropper height Here)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rail – Frame and Fork completes the Revel Rail model. There are 26 frames that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Revel Rail – Frame 2022 is the cheapest frame model and costs 3299$. Revel Rail – Frame and Fork 2022 is the most expensive one and costs 3999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro frames average price
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 3999$. Comparing this to the average Enduro frame price, we see that the price is 111.03% higher.
Overview of components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rail – Frame and Fork has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Rail – Frame and Fork comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Revel Rail – Frame and Fork comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
