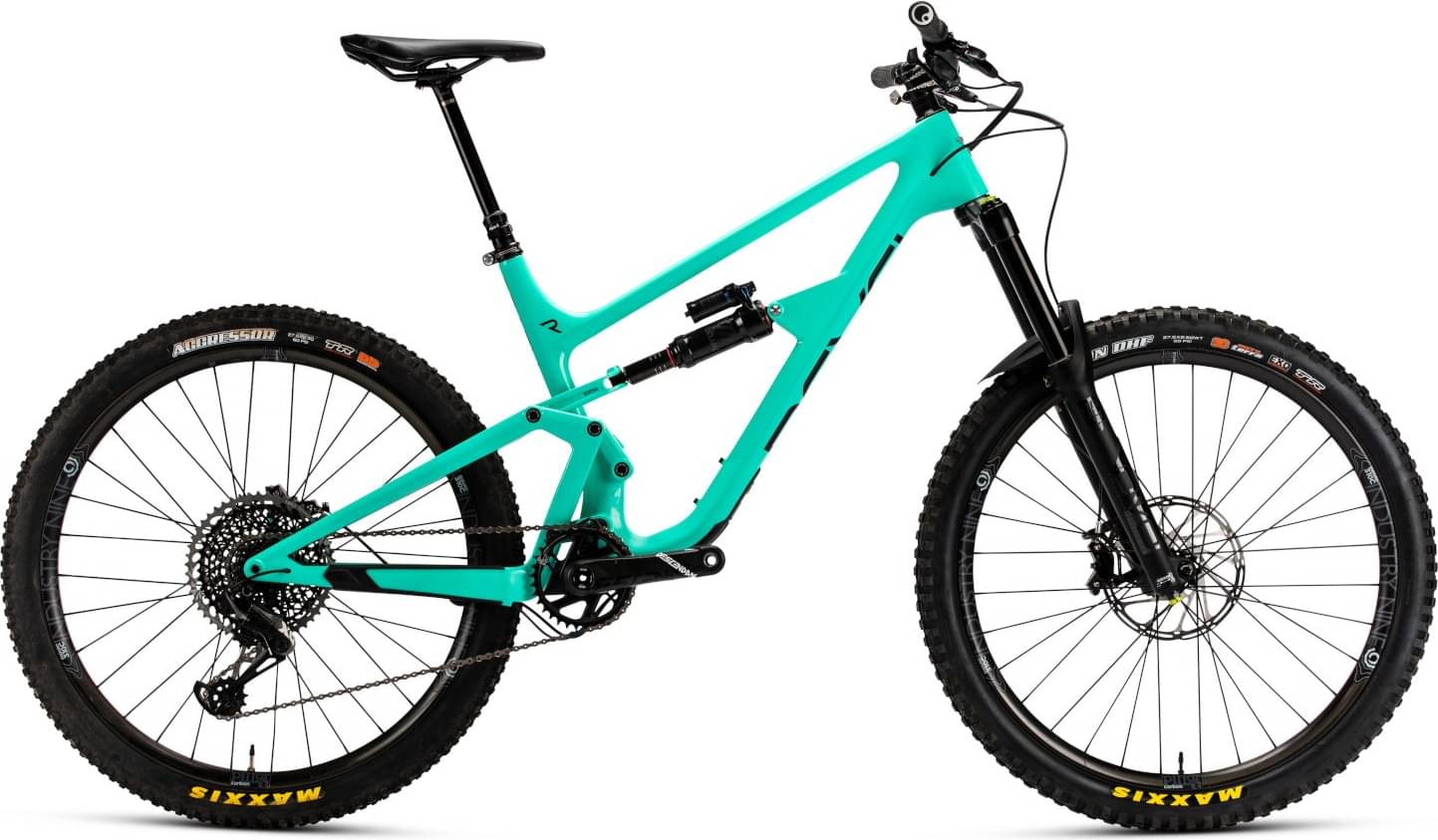

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Lyrik Ultimate RC2 170mm (*upgrade available)
Rear Shock
RockShox Super Deluxe Ultimate (*upgrade available)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52
Crank
SRAM Descendant Carbon DUB 170mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry Nine 1/1 carbon Wheelset (*upgrade available)
Tires
Maxxis Minion DHF 2.5? EXO+ Front, Maxxis Minion DHR 2.4? EXO+ Rear
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline 180mm front & rear
Cockpit
Stem
Truvativ Descendant 35 x 40mm
Handlebar
ENVE M7 Carbon 35 x 800mm
Grips
Lizard Skins Charger Evo Grip Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
WTB Volt CroMo Black
Seatpost
RockShox Reverb 150, 170, or 200mm (options available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rail – X01 Eagle belongs to the Revel Rail model. There are 26 bikes that carry this model name. Take a sneak peek at all Revel Rail bikes models from 2022, by clicking here.
Model range prices
Revel Rail 29 – GX Eagle 2022 is the most economical model, with a starting price of 5999$. Revel Rail – XX1 AXS Eagle 2022 on the other hand costs 10999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Revel Rail – X01 Eagle price was 7999$. If we compare this with the average Enduro bike cost we notice that the price is 122.26% higher.
Rail – X01 Eagle components
Fork
The fork installed on this bike is the RockShox Lyrik Ultimate model. The travel on this model is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Ultimate (*upgrade available), with a travel distance of 165mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Rail – X01 Eagle 2022 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail – X01 Eagle comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Rail – X01 Eagle. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
