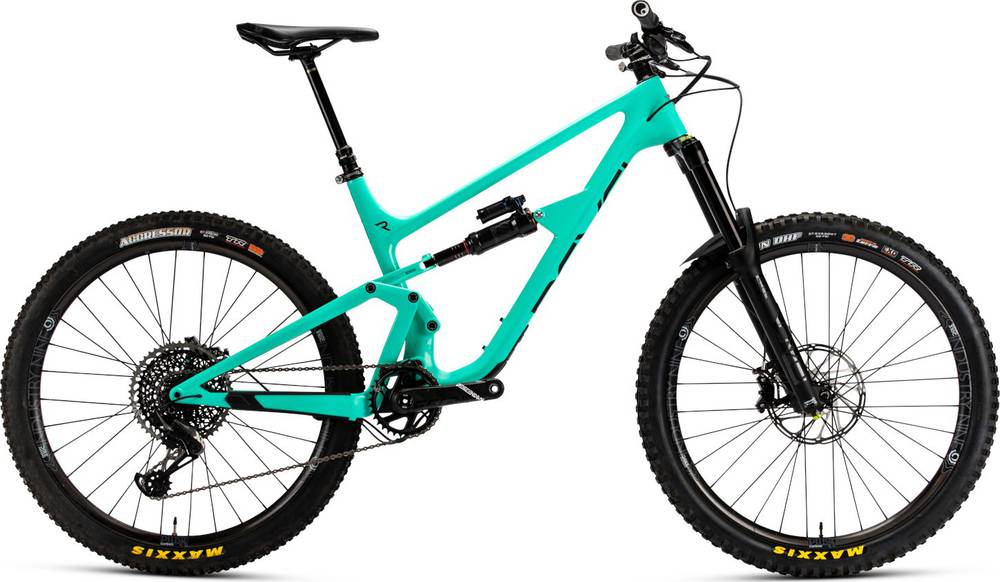

Revel Rail – XX1 AXS Eagle ENVE 2019
2019 Mountain
Estimate price |
9,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rockshox Lyrik Ultimate RC2 170mm (Options available in checkout)
Rear Shock
Rockshox Super Deluxe RCT (Options available in checkout)
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Eagle Controller
Cassette
SRAM XX1 Eagle
Crank
SRAM XX1 Carbon DUB 170mm or 175mm 34t
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
ENVE M735 Carbon Wheelset
Tires
Maxxis Minion DHF 2.5? EXO Front, Maxxis Minion DHR 2.4? EXO+ Rear (Options available in checkout)
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
ENVE M7 Carbon 35 x 40
Handlebar
ENVE M7 Carbon 35mm x 800mm
Grips
Ergon GE1 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SMA3 Standard Black
Seatpost
Rockshox Reverb Stealth AXS 1x 31.6 150mm or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rail – XX1 AXS Eagle ENVE belongs to the Revel Rail model. 26 bikes variations carry this model name so far. You can easily view all of the Revel Rail bikes models from 2019, here.
Model range prices
Revel Rail – GX Eagle 2019 is the most affordable bike of this model and has a price of 4999$. On the other hand, Revel Rail – XX1 AXS Eagle ENVE 2019, is the most expensive and costs 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Revel Rail – XX1 AXS Eagle ENVE price was 9999$. In conclusion, this bike price is 177.83% higher than the price of the average Enduro bike.
Rail – XX1 AXS Eagle ENVE components
Fork
The Rail – XX1 AXS Eagle ENVE comes factory-installed with the RockShox Lyrik Ultimate fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Revel Rail – XX1 AXS Eagle ENVE bike has the Rockshox Super Deluxe RCT (Options available in checkout) model installed, and has a travel of 165mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Rail – XX1 AXS Eagle ENVE are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail – XX1 AXS Eagle ENVE comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Revel model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
