Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail 27.5? 165mm travel
Suspension Fork
RockShox Lyrik Ultimate RC2 170mm
Rear Shock
RockShox Super Deluxe Ultimate (*upgrade available)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52
Crank
SRAM Descendant Carbon DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM X01 Eagle
Wheels
Rims
Revel RW30 28H Rims, Industry Nine 1/1 Hubs, (*upgrade available)
Tires
Maxxis Minion DHF 2.5? EXO+ Front, Maxxis Minion DHR 2.4? EXO+ Rear
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
RaceFace Turbine R 35x40mm
Handlebar
RaceFace NEXT R 35, 800 x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
RaceFace Turbine R, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 175mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Standover Height | 698 mm | 719 mm | 733 mm | 745 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |

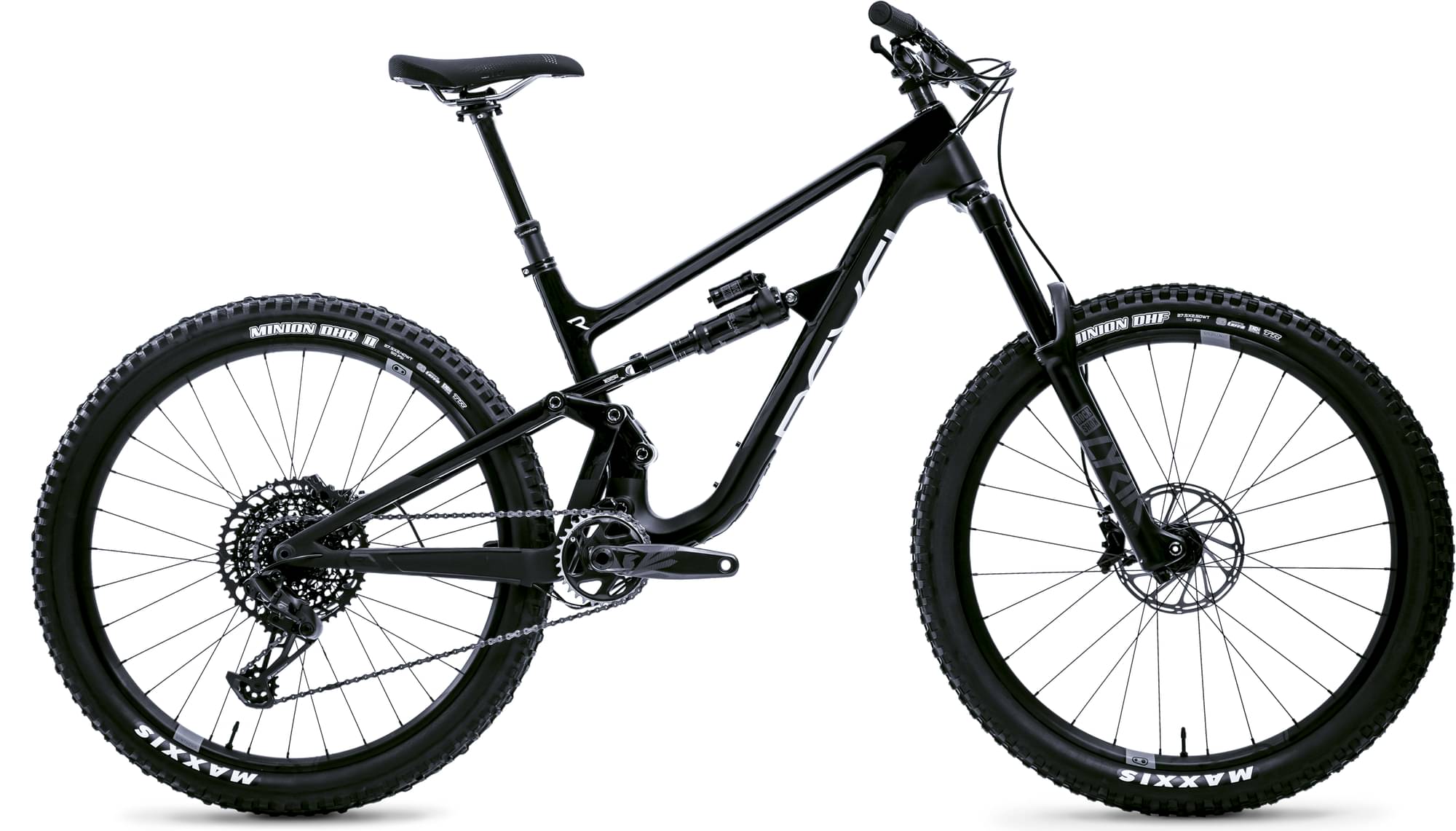

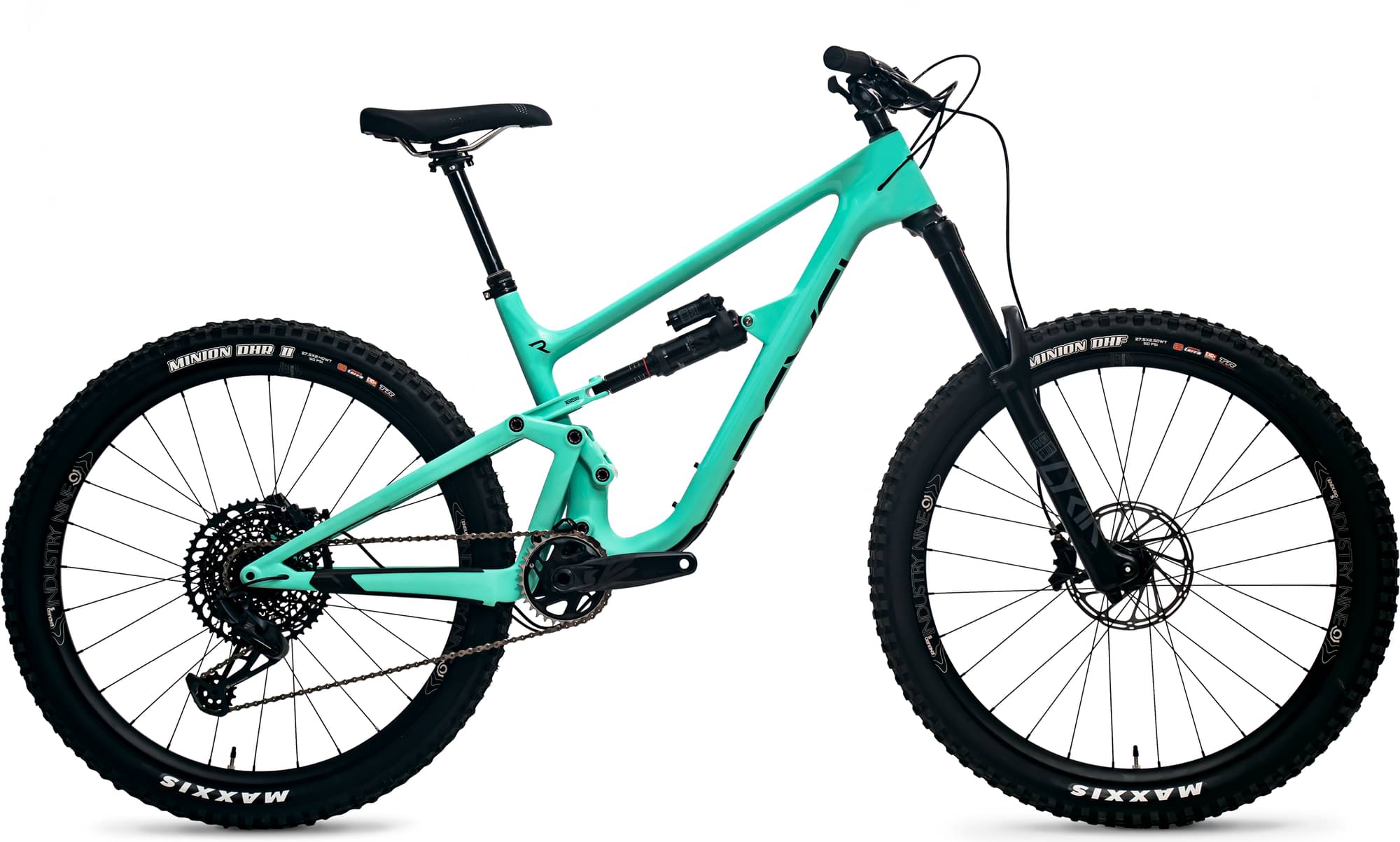

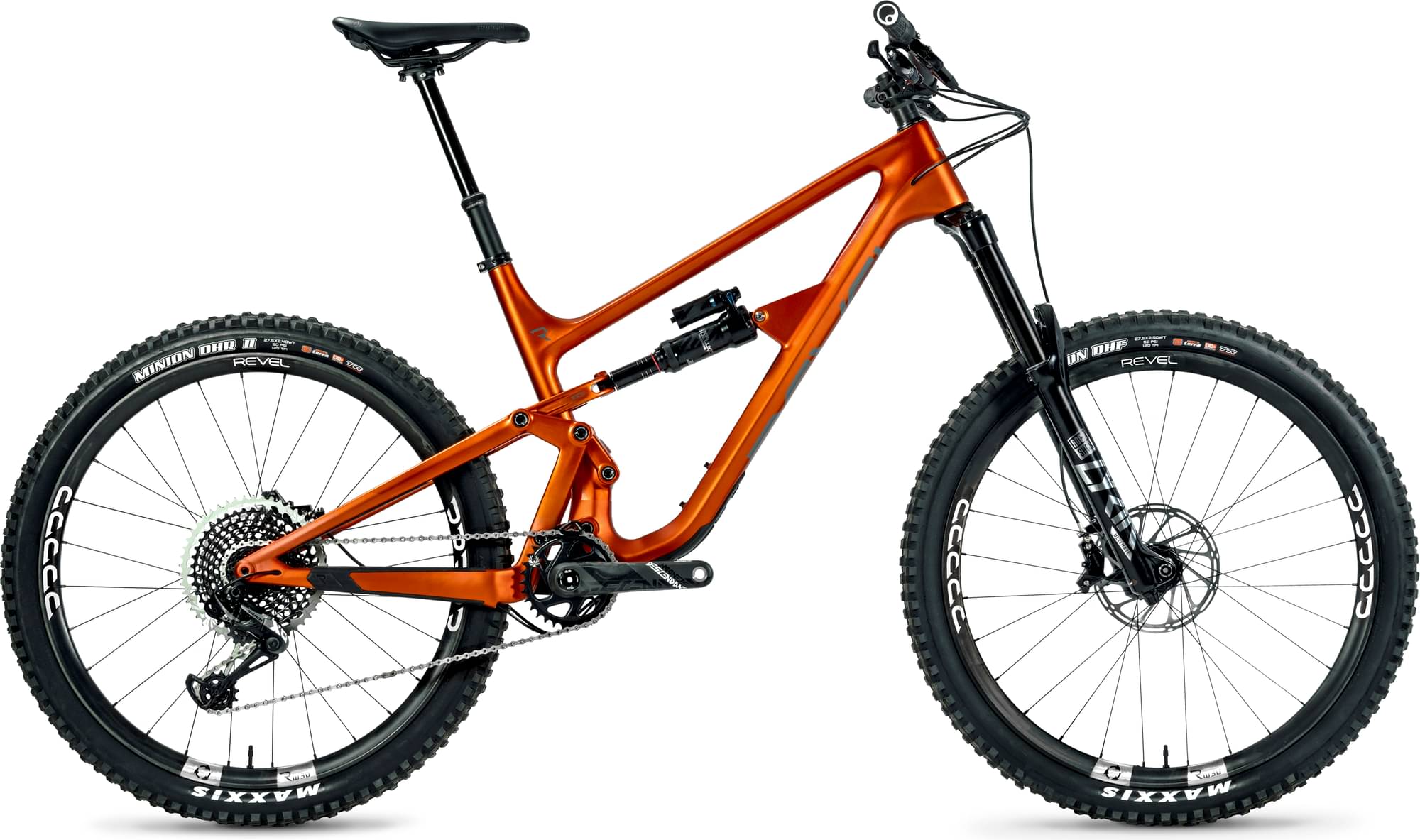

Model Overview
Rail27 SRAM X01 is a Revel Rail27 model. Revel launched 8 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Revel Rail27 SRAM GX 2022 is the cheapest bike model and costs 5999$. Revel Rail27 SRAM XX1 AXS 2022 is the most expensive one and costs 10499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Revel Rail27 SRAM X01 price was 7999$. Comparing this to the average Enduro bike price, we see that the price is 122.26% higher.
Rail27 SRAM X01 components
Fork
This bike has the RockShox Lyrik Ultimate fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Ultimate (*upgrade available), with a travel distance of 165mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Rail27 SRAM X01 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Rail27 SRAM X01 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
The Revel model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
