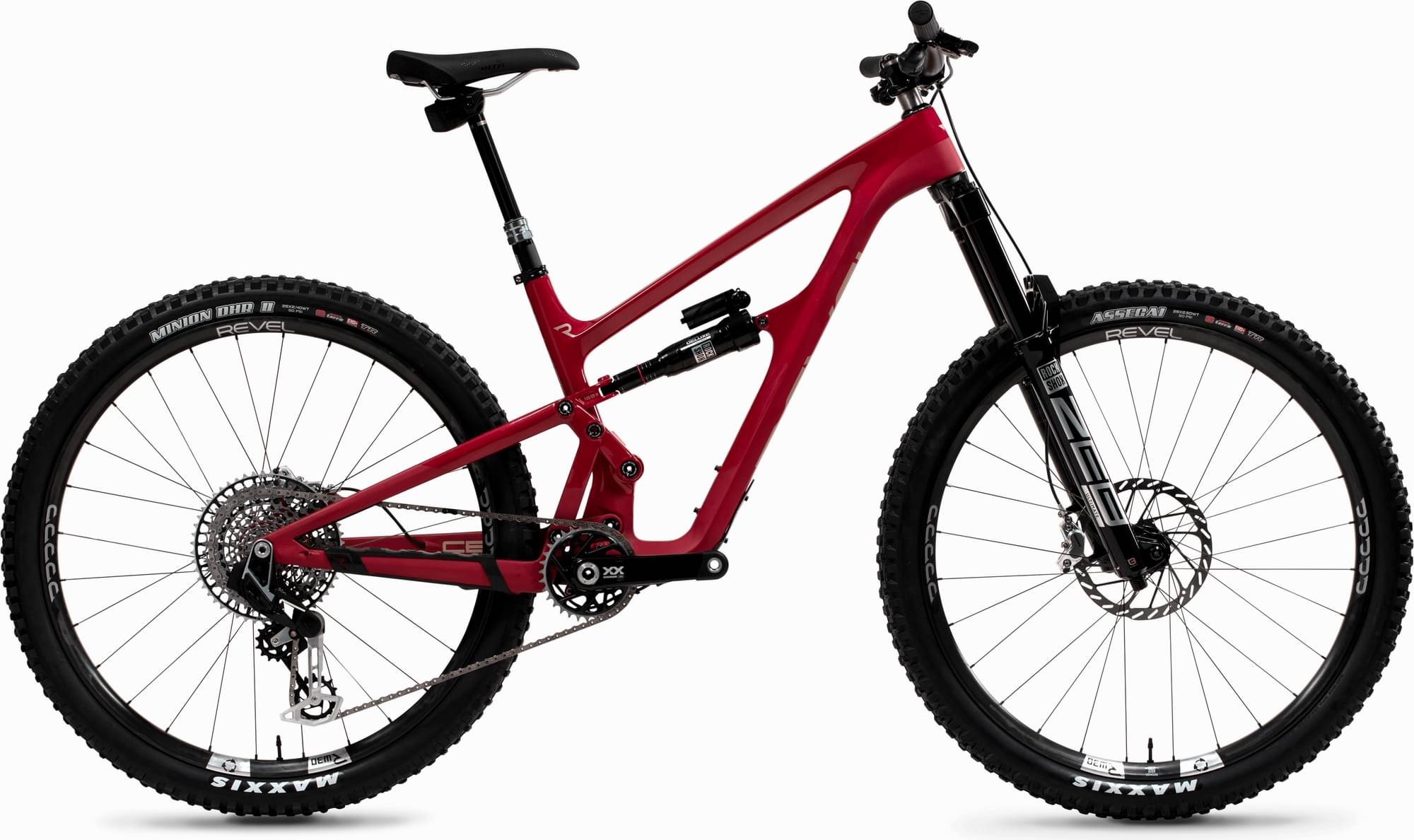

Revel Rail29 X0 EAGLE TRANSMISSION 2023
2023 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox ZEB Ultimate
-
Groupset X0, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
RockShox ZEB Ultimate 160mm Charger 3
Rear Shock
Rockshox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X0 ET
Shift Levers
SRAM AXS Shifter Pod
Cassette
SRAM X0 ET T-Type
Crank
SRAM X0 Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB BSA Wide
Chain
SRAM X0 ET T-Type
Wheels
Rims
Crank Bros. Synthesis Enduro Rims, Industry Nine 1/1 Hubs
Tires
Maxxis Minion DHF 29×2.5 EXO TR Front, Maxxis Minion DHR ll 29×2.4 3CT EXO+ TR Rear
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SM/M: SDG Radar Lux-Alloy L/XL: SDG Bel-Air Lux-Alloy
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG (31.6mm x 175mm), XL (31.6 x 200mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 747 mm | 768 mm | 794 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 618.5 mm | 621.5 mm | 630.5 mm | 639.5 mm |
| Reach | 420.5 mm | 440.5 mm | 462.5 mm | 487.5 mm |
| Top Tube Length | 578.5 mm | 599.5 mm | 623.5 mm | 651.5 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1174 mm | 1195 mm | 1221 mm | 1250 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 709 mm | 712 mm | 721 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
About this model
Rail29 X0 EAGLE TRANSMISSION is a Revel Rail29 model. 11 bikes variations carry this model name so far. You can easily view all of the Revel Rail29 bikes models from 2023, here.
Model range prices
The most economical model, the Revel Rail29 GX Eagle 2023 has a starting price of 6499$. Revel Rail29 XX Eagle Transmission 2023 on the other hand is the most expensive at 10999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Revel Rail29 X0 EAGLE TRANSMISSION price was 7999$. In conclusion, this bike price is 122.26% higher than the price of the average Enduro bike.
Overview of components
Fork
The RockShox ZEB Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Rockshox Super Deluxe Ultimate, with a travel distance of 155mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Rail29 X0 EAGLE TRANSMISSION model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail29 X0 EAGLE TRANSMISSION comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
