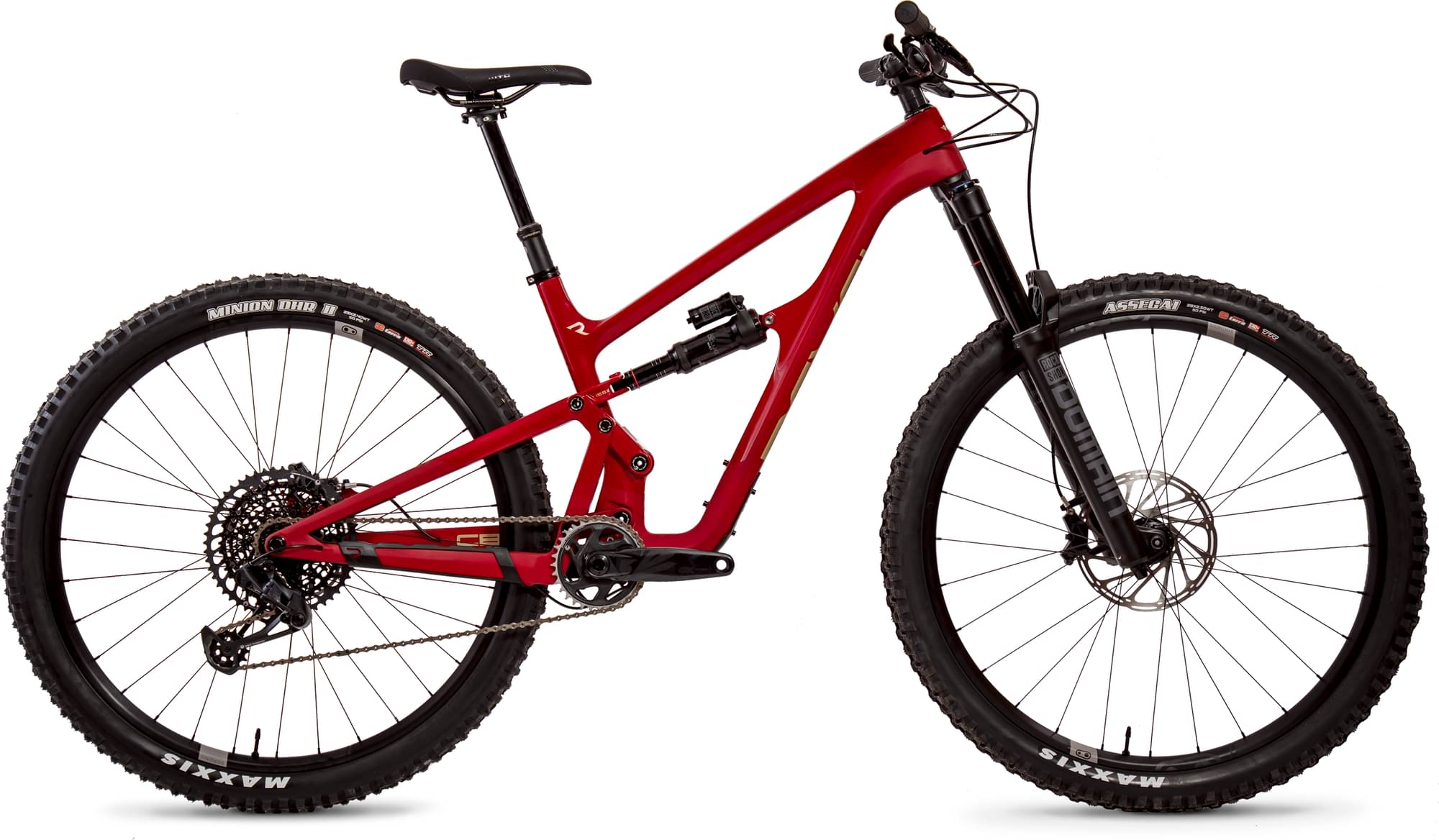

Revel Rail29 XX1 Eagle AXS 2022
2022 Mountain
Estimate price |
10,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox ZEB Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
RockShox ZEB Ultimate 160mm RC2
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS Controller
Cassette
SRAM XX1 Eagle 10-52t
Crank
SRAM XX1 Eagle AXS Carbon DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM XX1 Eagle
Wheels
Rims
Revel RW30 28H Rims, Industry Nine 1/1 Hubs, (*upgrade available)
Tires
Maxxis Assegai 29×2.5 3CT EXO+ TR Front, Maxxis Minion DHR ll 29×2.4 3CT EXO+ TR Rear
Brakes
Brakes
SRAM Code RSC or TRP DRH EVO
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Rockshox Reverb Wireless Stealth AXS, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 747 mm | 768 mm | 794 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 618.5 mm | 621.5 mm | 630.5 mm | 639.5 mm |
| Reach | 420.5 mm | 440.5 mm | 462.5 mm | 487.5 mm |
| Top Tube Length | 578.5 mm | 599.5 mm | 623.5 mm | 651.5 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1174 mm | 1195 mm | 1221 mm | 1250 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 709 mm | 712 mm | 721 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
About this model
Rail29 XX1 Eagle AXS is part of the Revel Rail29 model. Revel launched 11 bikes of this model so far. You can easily view all of the Revel Rail29 bikes models from 2022, here.
Model range prices
Revel Rail29 GX Eagle 2022 is the most economical model, with a starting price of 5999$. Revel Rail29 XX1 Eagle AXS 2022 on the other hand costs 10999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 10999$. Comparing this to the average Enduro bike price, we see that the price is 205.61% more expensive.
Rail29 XX1 Eagle AXS components
Fork
The Rail29 XX1 Eagle AXS comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Rail29 XX1 Eagle AXS has a rear shock with a travel of 155mm. The model RockShox Super Deluxe Ultimate is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Revel Rail29 XX1 Eagle AXS 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail29 XX1 Eagle AXS comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Rail29 XX1 Eagle AXS comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Revel Rail29 XX1 Eagle AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
