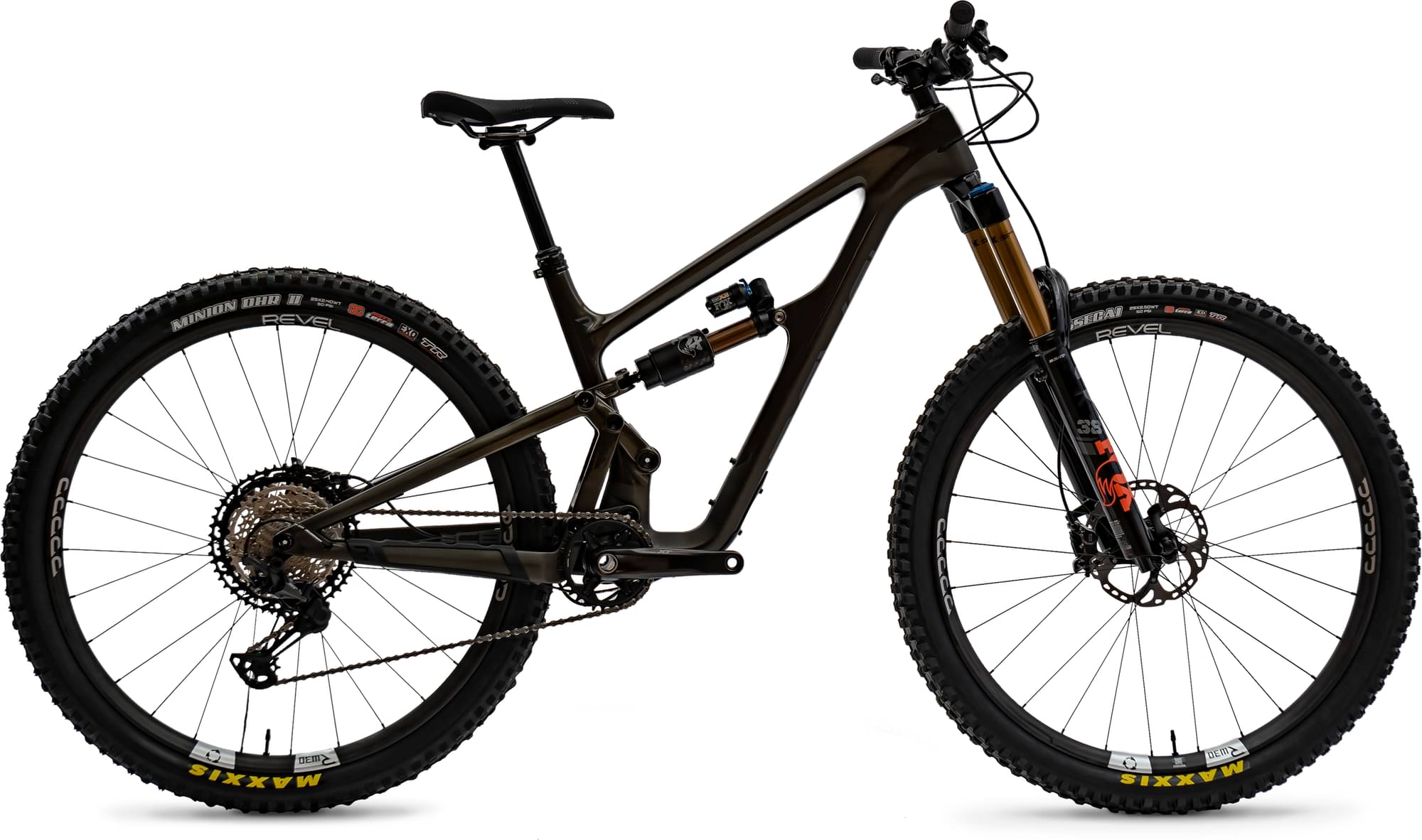

Revel Rail29 XX1 Eagle AXS 2023
2023 Mountain
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox ZEB Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rail29 155mm Travel
Suspension Fork
RockShox ZEB Ultimate 160mm RC2
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS Controller
Cassette
SRAM XX1 Eagle 10-52t
Crank
SRAM XX1 Eagle AXS Carbon DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM XX1 Eagle
Wheels
Rims
Revel RW30 28H Rims, Industry Nine 1/1 Hubs, (*upgrade available)
Tires
Maxxis Assegai 29×2.5 3CT EXO+ TR Front, Maxxis Minion DHR ll 29×2.4 3CT EXO+ TR Rear
Brakes
Brakes
SRAM Code RSC or TRP DRH EVO
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Rockshox Reverb Wireless Stealth AXS, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.36 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 747 mm | 768 mm | 794 mm | 823 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 618.5 mm | 621.5 mm | 630.5 mm | 639.5 mm |
| Reach | 420.5 mm | 440.5 mm | 462.5 mm | 487.5 mm |
| Top Tube Length | 578.5 mm | 599.5 mm | 623.5 mm | 651.5 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 393.5 mm | 415.5 mm | 453.5 mm | 482.5 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 98 mm | 108 mm | 118 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1174 mm | 1195 mm | 1221 mm | 1250 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 709 mm | 712 mm | 721 mm | 749 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
About this model
Rail29 XX1 Eagle AXS is part of the Revel Rail29 model. Revel launched 11 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Revel Rail29 GX Eagle 2023 is the cheapest bike model and costs 6499$. Revel Rail29 XX Eagle Transmission 2023 is the most expensive one and costs 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10499$. In conclusion, this bike price is 191.72% higher than the price of the average Enduro bike.
Rail29 XX1 Eagle AXS components
Fork
The Rail29 XX1 Eagle AXS comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate rear shock model, which has a travel of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Rail29 XX1 Eagle AXS bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail29 XX1 Eagle AXS comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Revel Rail29 XX1 Eagle AXS bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Revel model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
