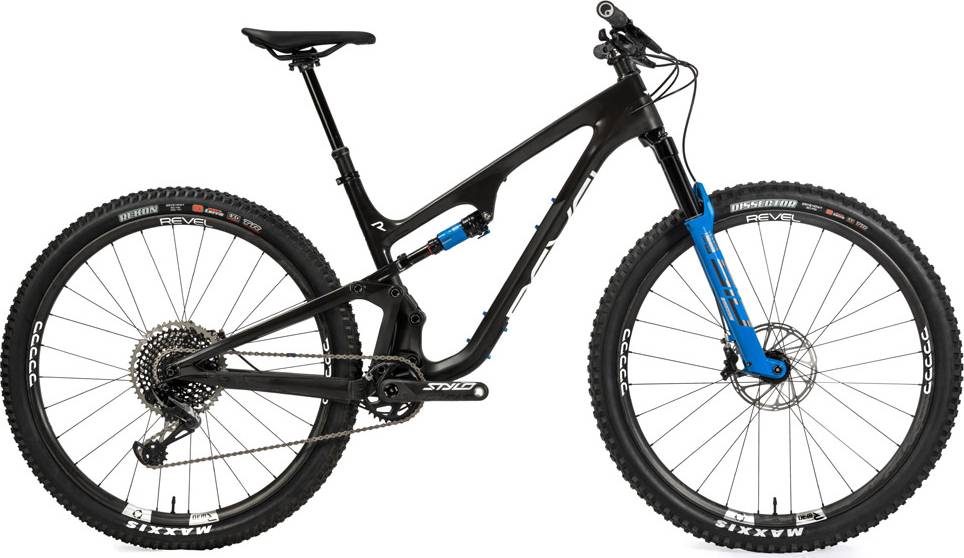

Revel Ranger – Eagle X01 2020
2020 Mountain
Estimate price |
7,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset X01 Eagle, Truvativ Stylo Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID Ultimate 120mm(options available at checkout)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52
Crank
SRAM Stylo Carbon DUB 170mm or 175mm 32t(options available at checkout)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry 9 1/1 Wheelset (options available at checkout)
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Truvativ Descendant 31.8mm x 40mm
Handlebar
ENVE M6 Carbon 31.8mm x 780mm
Grips
Ergon GE10 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SM10 Standard Black
Seatpost
Crank Brothers Highline 7 or 2020 Rockshox Reverb Stealth 1x 31.6 x 150mm, 175mm or 200mm(options available at checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ranger – Eagle X01 completes the Revel Ranger model. 26 bikes variations carry this model name so far. You can easily view all of the Revel Ranger bikes models from 2020, here.
Model range prices
Revel Ranger – GX Eagle 2020 is the most economical model, with a starting price of 4999$. Revel Ranger – Eagle XX1 AXS 2020 on the other hand costs 9999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 7199$. Doing a quick comparison, we notice that Ranger – Eagle X01 price is 277.9% more expensive than the average cost of a Crosscountry bike.
Ranger – Eagle X01 components
Fork
Revel Ranger – Eagle X01 2020 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Ranger – Eagle X01 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ranger – Eagle X01 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Ranger – Eagle X01. Therefore, climbing or descending will be a breeze.
