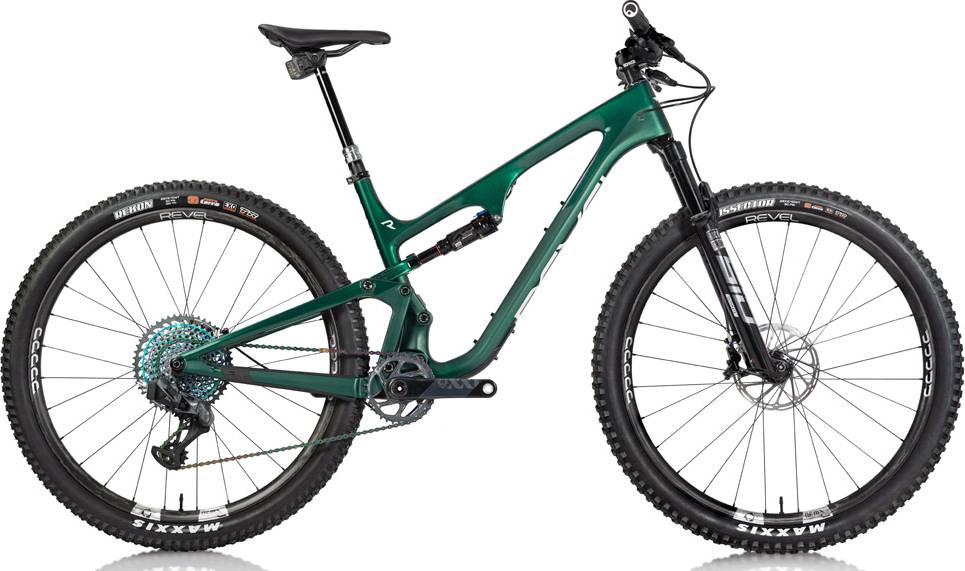

Revel Ranger – Eagle XX1 AXS 2021
2021 Mountain
Estimate price |
9,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID Ultimate 120mm(options available at checkout)
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 Eagle 10-52
Crank
SRAM XX1 Eagle AXS Carbon DUB 170mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Wheels
Rims
RW30 Industry 9 Hydra Wheelset
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM G2 Ultimate Rainbow
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
ENVE M6 Carbon 31.8mm x 35mm
Handlebar
ENVE M6 Carbon 31.8 x 780mm
Grips
Ergon GE10 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SM10 Standard Black
Seatpost
Rockshox Reverb Stealth AXS 1x 31.6 x 150mm or 170mm(options available at checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ranger – Eagle XX1 AXS is a Revel Ranger model. Revel released 26 bikes variations of this model so far. Take a sneak peek at all Revel Ranger bikes models from 2021, by clicking here.
Model range prices
Revel Ranger – GX Eagle 2021 is the most affordable bike of this model and has a price of 5199$. On the other hand, Revel Ranger – Eagle XX1 AXS 2021, is the most expensive and costs 9999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Revel Ranger – Eagle XX1 AXS price was 9999$. Comparing this to the average Crosscountry bike price, we see that the price is 424.88% higher.
Overview of components
Fork
Revel Ranger – Eagle XX1 AXS 2021 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Ranger – Eagle XX1 AXS are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Ranger – Eagle XX1 AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Ranger – Eagle XX1 AXS. Therefore, climbing or descending will be a breeze.
