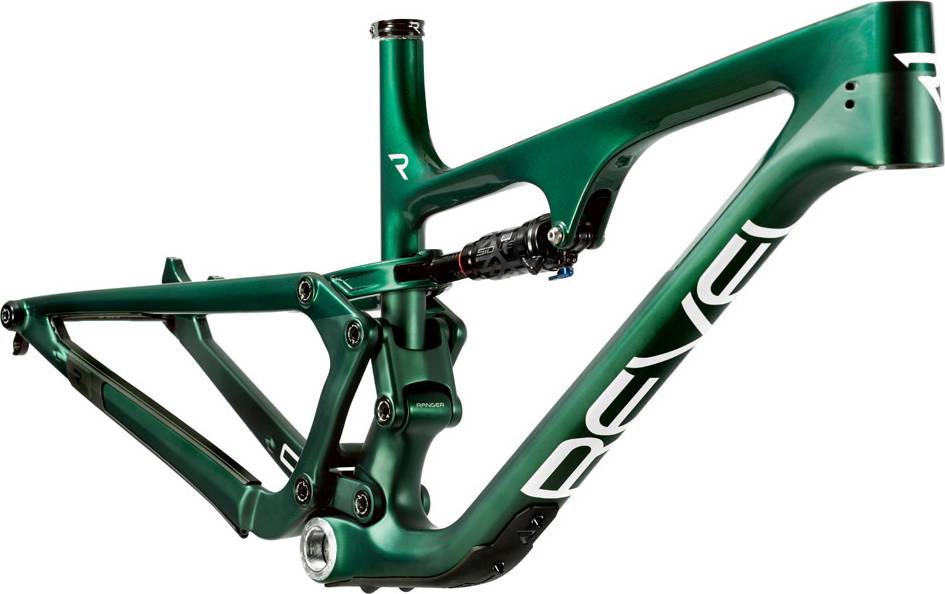

Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 115mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
160mm post mount / 180mm max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ranger – Frame belongs to the Revel Ranger model. Revel launched 26 frames of this model so far. Take a sneak peek at all Revel Ranger frames models from 2020, by clicking here.
Model range prices
Revel Ranger – Frame 2020 is the cheapest frame model and costs 2799$. Revel Ranger – Frame and Fork 2020 is the most expensive one and costs 3499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 2799$. Comparing the average cost of a Crosscountry frame to this one, you will see that Ranger – Frame price is 65.72% higher.
Overview of components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Ranger – Frame is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Revel Ranger – Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
