Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 115mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Brakes
Brakes
160mm post mount / 180mm max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

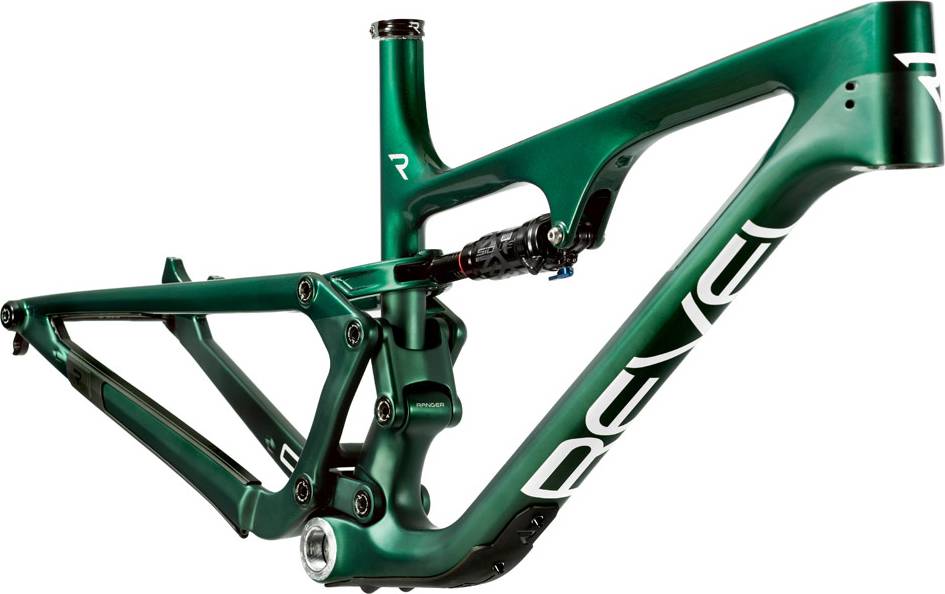

Ranger – Frame completes the Revel Ranger model. Revel released 26 frames variations of this model so far. You can easily view all of the Revel Ranger frames models from 2021, here.
Model range prices
Revel Ranger – Frame 2021 is the cheapest frame model and costs 2799$. Revel Ranger – Frame and Fork 2021 is the most expensive one and costs 3499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Revel released this model in 2021, its price was 2799$. Comparing this to the average Crosscountry frame price, we see that the price is 65.72% higher.
Ranger – Frame components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Ranger – Frame is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
